NuVision TM1088 Camera Replacement

Geschrieben von: Nathaniel Nasman
  • Kommentare: 0
NuVision TM1088 Camera Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to remove the front and rear cameras. The front and rear cameras must be replaced together.

  1. YqYiMDYtev5Cp6cm

    • Place the plastic opening tool between the front and rear cover and pry up on each corner of the cover.

  2. rx2quigGJJT2JnlG

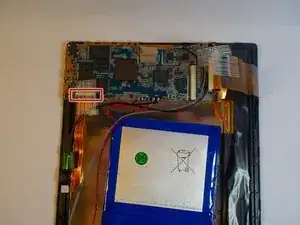

    • Pull camera plug upward and away from the motherboard.

  3. R14H2w2UIUtXPSEE

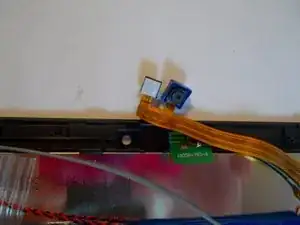

    • Remove each camera from the front cover assembly. They are simply held in by tension.

Abschluss

To reassemble your device, follow these instructions in reverse order.
