NuVision TM1088 Motherboard Replacement

Geschrieben von: Nathaniel Nasman
  • Kommentare: 0
NuVision TM1088 Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

30 - 45 Minuten

Einleitung

This guide will show you how to replace a motherboard. Replacing the motherboard will require frequent soldering.

  1. YqYiMDYtev5Cp6cm

    • Place the plastic opening tool between the front and rear cover and pry up on each corner of the cover.

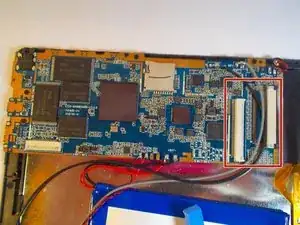

  2. dMVuEJGnTGWwqoOF

    • Remove the two plugs for the screen by pulling up and away from the motherboard.

  3. DNAp5VhT4WfNkJhX

    • Remove the plug for the cameras by pulling the plug up and away from the motherboard.

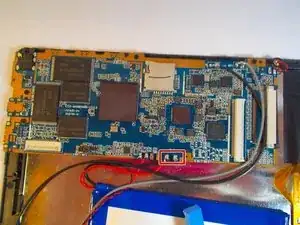

  4. pmdRKlcbVkbLkJQI

    • Melt solder and remove red and black wires leading to the battery.

  5. xlSXBTakZnC3EiOU

    • Melt the solder on the black and gray wires and remove wires from motherboard.

  6. wJKPTQKLMWZd1Wew

    • Melt the solder and remove the red and black wires leading to the speaker.

  7. dFNBgFlgVQkRli5I

    • Remove the four 4 mm Phillips head screws holding in the motherboard.

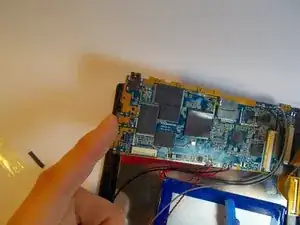

  8. cGJJ2OIRg5wJGovs

    • Lift the motherboard away from the front cover assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
