NuVision TM800A510L Rear Camera Replacement

Geschrieben von: Kelsey Riggs
  • Kommentare: 0
NuVision TM800A510L Rear Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

30 - 40 Minuten

Einleitung

Most of your time will be getting the back off of the device. The cameras are held down with a little adhesive but are relatively easy to remove.

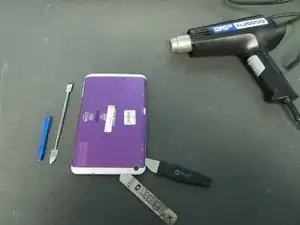

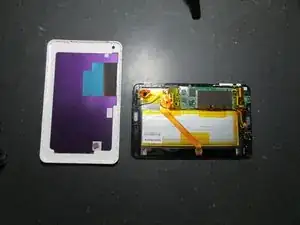

  1. O6xlN6fb1xwTcCMn
    O6xlN6fb1xwTcCMn
    xe2mAL4YGEoAY6kP

    • Use a Heat Gun to heat the sides of the device one at a time. The Heat Gun will loosen the adhesive.

    • Use thin tools to pry the back of the device off.

    • Metal tools may work best but may also scratch the device. Plastic prying tools can also be used.

    • Be careful around the power and volume buttons.

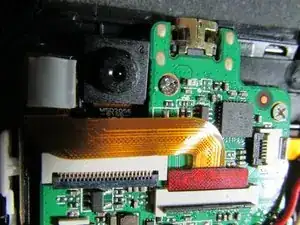

  2. CPuxaUZAQ1PDUiOa

    • There are two different cameras and each have different ribbons.

    • Unlock both ribbons by flipping the black bar up.

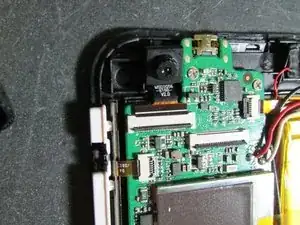

  3. VN4QAPKk3muDVWOx
    VN4QAPKk3muDVWOx
    pNGuIoAs42g1QLQN

    • The camera facing towards the table lifts out easily, so go ahead and take that one out.

    • This works out well, if this is the camera you are most concerned about.

    • If you are more concerned the one facing you, move on to the next step.

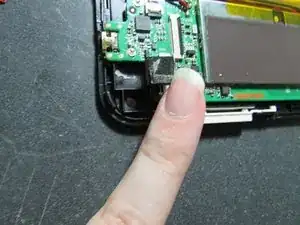

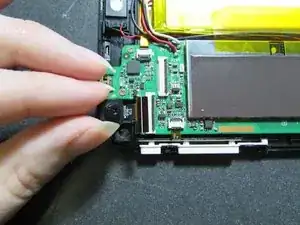

  4. JG3TLEaaM4M2vcNW
    JG3TLEaaM4M2vcNW
    XOZZGiHApETFQtjO

    • This camera is held down with adhesive, so you must be careful when prying it.

    • GO SLOW!

    • Camera pulls up and out of its slot easily.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Be advised that you will need to replace the adhesive.
