Numark TT1600 Belt Drive Replacement

Geschrieben von: Nikolai
  • Kommentare: 0
Numark TT1600 Belt Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

Make sure device is unplugged.

  1. TqTvaHh2JEGhhkh1

    • Remove slip mat from top of the platter.

  2. 5EjhUeZA3i4IrC1f

    • Remove platter by inserting thumbs in holes and slowly pulling up.

    • There will be some initial resistance.

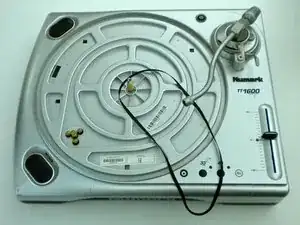

  3. OMh6MEpV4ejAr3Ke

    • Remove damaged belt which will be located below the platter.

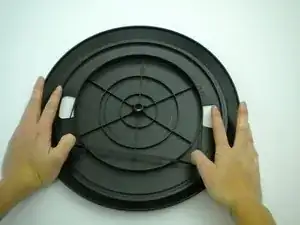

  4. GQsIkaGvUtyPTHwY

    • Install new belt by securing it around the inner ring, located on the back of the platter.

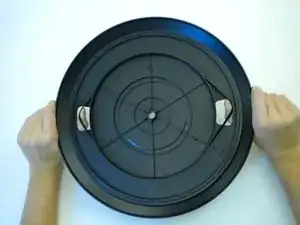

  5. O4bwAv1d415W6SS5

    • Place a thumb in each hole.

    • You should be able to feel the rubber belt.

    • Gently pull the belt with each thumb, keeping the belt taut around the inner ring.

  6. PBPeZGvLpjWG12HN
    PBPeZGvLpjWG12HN

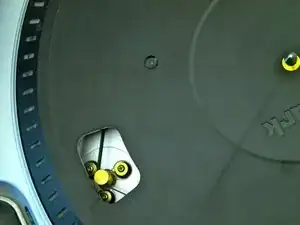

    clogbiN5uciJtOly

    • Secure platter back on turntable while keeping belt taut.

    • Pull belt around motor spindle.

    • Gently let go of belt.

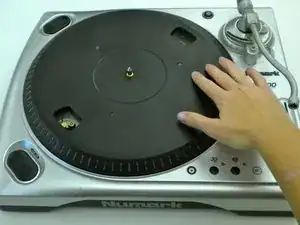

  7. fSLSynovd3xpRP1B

    • Test turntable by spinning the platter.

    • There should be slight tension causing the platter to come to a stop.
