Nutri Ninja BL450 Cooling Pipe Replacement

Geschrieben von: Morgan Blauth

Kommentare: 2

Nutri Ninja BL450 Cooling Pipe Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

Users will be able to replace the cooling pipe of their blender using this guide.

Werkzeuge

Schritt 2

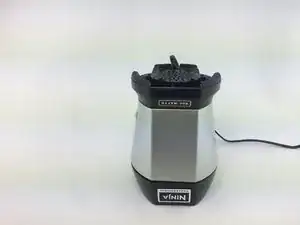

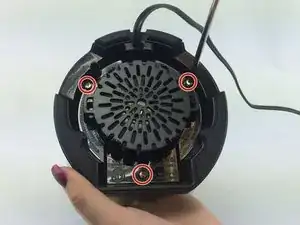

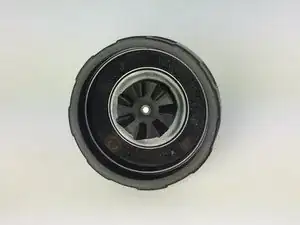

Turn the blender over and unscrew the three 14 mm screws holding the slotted base in place. These are Torx Security bits (TR9) on some units.

The three screws holding the slotted base in place on some units are Torx Security bits (TR9) not phillips. The tool is listed above (T9 Torx Screwdriver is actually a TR9 Torx Security Screwdriver . It’s the right tool.

Dennis Carr - 26/02/18

So when you remove the bottom plate and completely remove the motor, does the new motor come with the electrical cord already attached, and if so, how do you get the bottom plate off and on with the motor on one side of the cord and the plug on the other. Or does it come without the cord and you need to do some soldering?

Craig Velardi -

Schritt 3

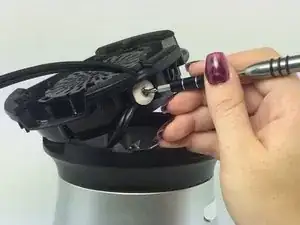

Using a the standard Phillips head screwdriver bit, remove the slotted black plastic covering and then unscrew the one 11mm screw holding the power cord in place.

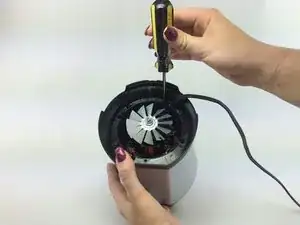

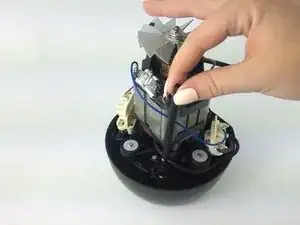

Unscrew the four 14 mm screws that are in the deep slots. This will release the motor from the base.

Schritt 4

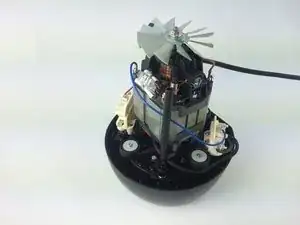

CAUTION: the silver blade attached to the motor is very sharp. Use a towel or thick cloth to protect your hands for the next step.

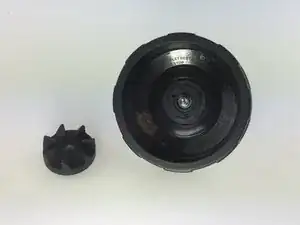

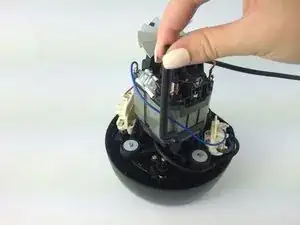

Using a towel, hold the silver fan still. Twist the small black rubber wheel that is attached to the top of the blender base to the right. This will remove the wheel for replacement.
