Nuvision TM800A510L Headphone Jack Replacement

Geschrieben von: Kelsey Riggs
  • Kommentare: 0
Nuvision TM800A510L Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

25 - 35 Minuten

Einleitung

Be aware that most of your time will be spent getting the back off of the device. However, once in the device the repair is quick and easy.

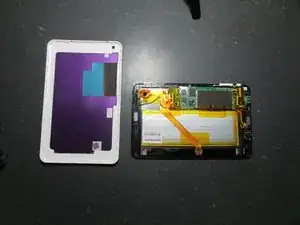

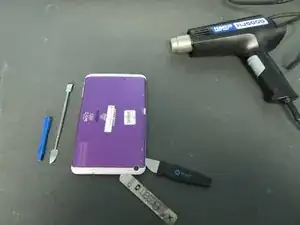

  1. OhkF6YikXJw56XDi
    OhkF6YikXJw56XDi
    mVvsuiOROPOGBVk1

    • Use a Heat Gun to loosen the adhesive around the inside of the device.

    • Use prying tools to lift the back of the device up.

    • I recommend prying up one side at a time and heating the adhesive to 'just barely too hot to touch'.

  2. KKhVjsR6AM1FBAfL

    • Unscrew the headphone jack from the device.

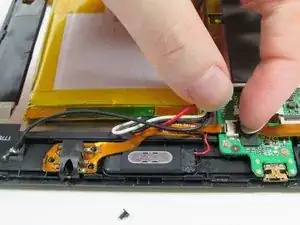

  3. yIu5x1Ur4lS6rlCC

    • Unlock the headphone jack ribbon.

  4. yGqMRsmfKLKNqrVc

    • Move the wires out of the way and slowly pull the ribbon out of the circuit dock.

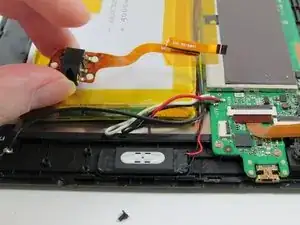

  5. LeHj6511H6kxLQBE

    • Lift headphone jack/ribbon out and it's FREE!

Abschluss

To reassemble your device, follow these instructions in reverse order.
