Nuwave Brio 6Q Air Fryer Disassembly

Geschrieben von: Jeff Miller
  • Kommentare: 0
Nuwave Brio 6Q Air Fryer Disassembly

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

This Air Fryer came in for service during our Repair Café. I found a bad safety switch and replaced it with a new one from eBay.

  1. There are 2 screws inside the cooking chamber.

    • There are 2 screws inside the cooking chamber.

  2. OgGQbY1GHNIxdm6S
    OgGQbY1GHNIxdm6S
    lPWLU5TSkvCm6XZS
    CFoI12xhDEAdvDnd

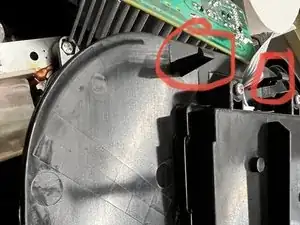

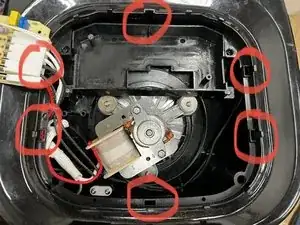

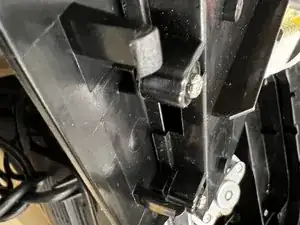

    • The top will pop off at these clips, use a tool or your fingers to gently pull.

  3. KUKguoTmvdWEVPWs
    KUKguoTmvdWEVPWs
    WbYSBu1qaLiphXS6

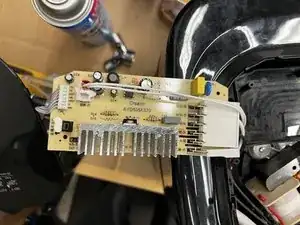

    • Remove the screws to remove the circuit board.

  4. The safety switch is what was bad on this one. I replaced it with one from eBay.

    • The safety switch is what was bad on this one. I replaced it with one from eBay.

Abschluss

To reassemble your device, follow these instructions in reverse order.
