Einleitung
The Nvidia Shield controller uses an internal fan to help cool its other internal components. Eventually, the fan could require replacement after normal use. Repairing the fan will help to avoid the controller’s internal components overheating, therefore prolonging the life of the device. This guide will explain how to replace the fan using easily found tools, with no special skills needed.
Werkzeuge
-
-
Remove the seven 6.4mm T5 Torx screws from the back panel.
-

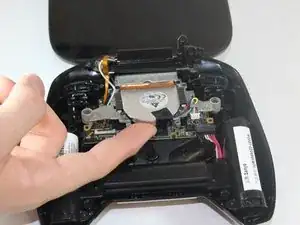

Use the spudger to separate the front and back panels.
-
-
-

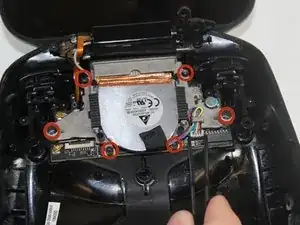

Remove the six 6.5mm T5 Torx screws.
-
Disconnect the power wires.
-
Peel back the copper tape and disconnect the black and white wires.
-
-
-
Remove the two 7.3mm and four 8.4mm T5 Torx screws and disconnect the power cable.
-
Lift the fan free after the screws and cable are removed.
-
To reassemble your device, follow these instructions in reverse order.
For the rubber screw covers, it is easiest to push at them at the top, otherwise you have the possibility of damaging the surrounding rubber.
Any hints at getting the center plastic screw cover out?
