Nvidia Shield Pro Android TV Controller D-Pad Replacement

Geschrieben von: Ben Carrasco
  • Kommentare: 0
Nvidia Shield Pro Android TV Controller D-Pad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

35 Minuten

Einleitung

Use this guide if the D-pad on your Nvidia Shield Pro Android TV controller is unresponsive or the buttons on the pad are behaving irregularly. All you will need is a T6 Torx screwdriver and a plastic opening tool. The replacement process is straightforward, but carefully handle the circuit board and gently remove the wires from their sockets when instructed.

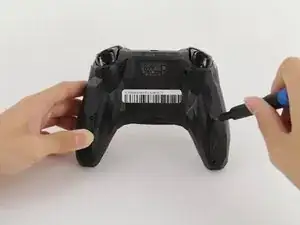

  1. ACTfutWBjHIZDSVh
    ACTfutWBjHIZDSVh
    rODGiXjmaQbMfL6i
    qAMQ5wYyG4xrOMH2

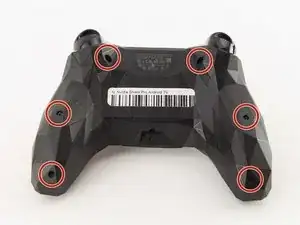

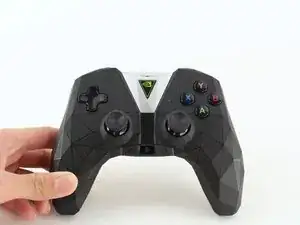

    • Remove the six T6 Torx screws from the back of the controller.

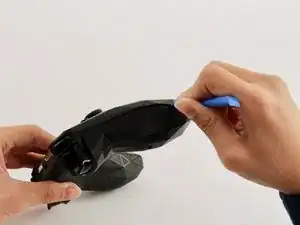

  2. n2pCYNCHUBMZRdMq

    • Gently open the top frame of the cover with the plastic opening tool.

  3. BEGguYxnV3ubMPTY
    BEGguYxnV3ubMPTY
    VQIPPDrHCfW4lV5C

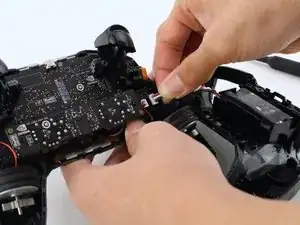

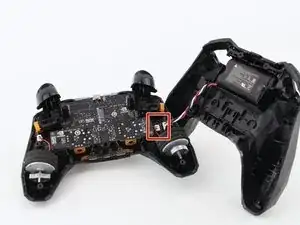

    • Gently pull the wire connector out of its socket, separating the two halves of the controller.

  4. pd2EVW24TQNd6fqc

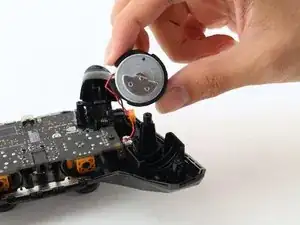

    • Remove the wire attached to the circular piece.

  5. iyGSUuS1EoAeieh1
    iyGSUuS1EoAeieh1
    NtEEIEuTvQtPeYUZ

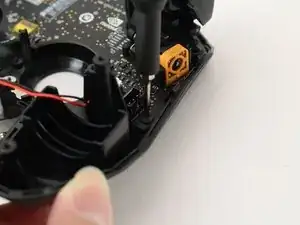

    • Carefully remove the two T6 Torx screws from either side of the motherboard.

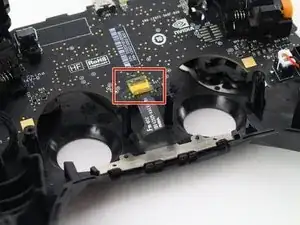

  6. rXFh3UxRKqfs6xEX

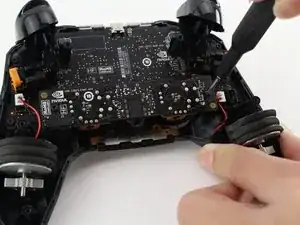

    • Remove the yellow plug from its socket.

  7. 5kIgJJRsQVjPy4af
    5kIgJJRsQVjPy4af
    ksMVk3Mt5l4wCI2x

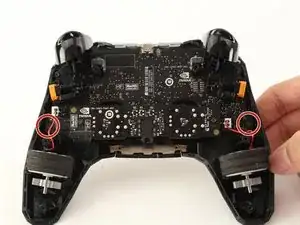

    • Remove the two T6 Torx screws.

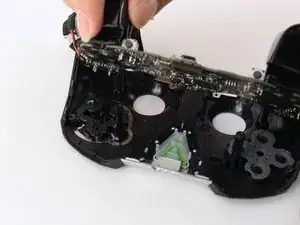

  8. ILTqX44BpRTdtSZJ

    • Slowly pull up the primary circuit board of the controller until the D-pad is revealed.

    • Carefully remove the board.

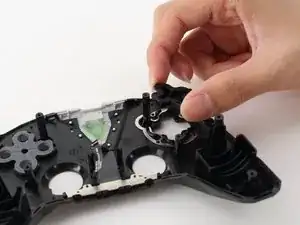

  9. uq6KEBmxNLnuu5TZ

    • Gently remove and replace the D-Pad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
