Einleitung

  1. 2upWrDkkHSuAim2N
    2upWrDkkHSuAim2N
    rEXISDqpGVWuZV3M
    UMZTLXtlRFbZQetZ
    • Remove the six T6 Torx screws from the back of the controller.

  2. kqNxDigpNgUFmIbq
    • Gently pry open the top frame of the cover with a plastic opening tool.

  3. hWrLEB4a6tuLcsas
    hWrLEB4a6tuLcsas
    dfFmUA3LOYAwawct
    • Gently pull the wire connector directly out of its socket, separating the two halves of the controller.

  4. ffpZiB5LMahrkyYL
    ffpZiB5LMahrkyYL
    qF1stmFWc12RxCdn
    • Remove the two T6 Torx screws.

  5. 2FJIdhUCPHVKGsVV
    2FJIdhUCPHVKGsVV
    trIQQg3ZLOmuofyA
    • Remove the guard piece that secures the thumb-sticks to the controller.

    • Apply vertical pressure with two fingers to carefully pop off the thumb-stick(s) in need of repair.

    • Replace it by sliding a new thumb-stick onto the plastic post that secured the old one.

  6. EGeTlc6aXBCNgGQc
    EGeTlc6aXBCNgGQc
    QQXMBfAtWOgPKKnj
    m4oMBZZPqUGJ12At

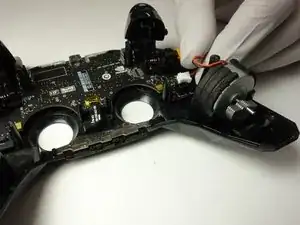

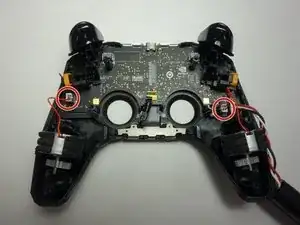

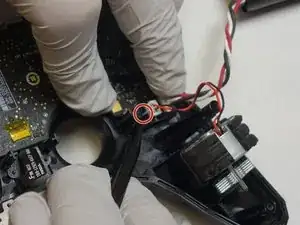

    • Grip the plugs as close to their ports as possible and pull them directly up and out.

    • Lift the rumble motors up and out of the chassis.

Abschluss

To reassemble your device, follow these instructions in reverse order.
