Nvidia Shield Pro Android TV Fan/Heat Sink Replacement

Geschrieben von: Jimmy Chen
  • Kommentare: 1
Nvidia Shield Pro Android TV Fan/Heat Sink Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

If your Nvidia Shield Pro Android TV is overheating, or you begin to hear a loud clicking noise when launching and using your device, use this guide to remove and replace your fan/heat sink. All you will need is a T6 Torx screwdriver and a plastic opening tool. You will not need to perform any difficult steps, but carefully detach the multi-colored wire.

  1. tD2yiBFw4AeFPpYC
    tD2yiBFw4AeFPpYC
    eP1aODe3nauq1C2g

    • Flip to the back side of your Nvidia Shield Pro Android TV.

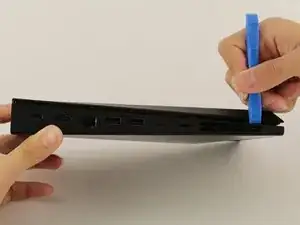

    • To open the bottom cover of the Nvidia Shield, start from the corner and slide your plastic opening tool across the gap.

    • If using a plastic opening tool to open the bottom cover is difficult, try using a metal spudger.

  2. ur1GXJnKNu6Ikwdw
    ur1GXJnKNu6Ikwdw
    U5E3gjEbZSM6xGGi
    VPPFqPapevEuVY16

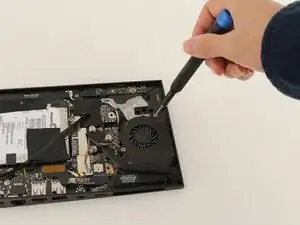

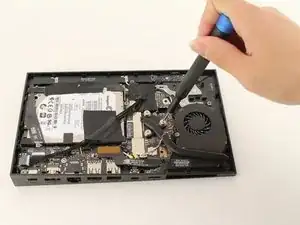

    • Remove the five screws with a T6 Torx screwdriver.

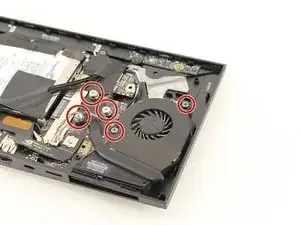

    • Two of the screws are located directly on top of the fan/heat sink. The other three screws are located on a small triangle plate on the left side of the fan/heat sink.

  3. IUCtmvplQFawrrkx
    IUCtmvplQFawrrkx
    FKUQQ1orLd6FKFIn

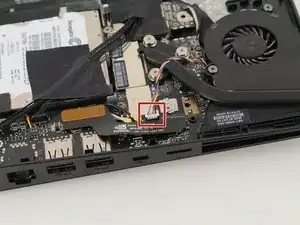

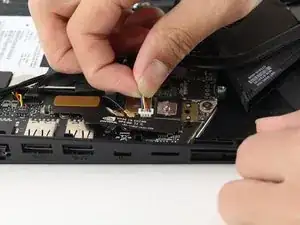

    • Once the screws are removed, gently detach the multi-colored wired connection from the motherboard.

  4. jdeDLBS1rZpQZnRT

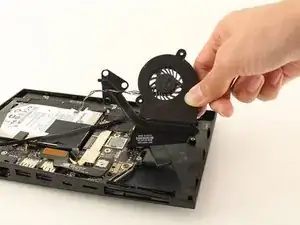

    • Gently remove the fan/heat sink out of the Nvidia Shield.

Abschluss

To reassemble your device, follow these instructions in reverse order.
