Nvidia Shield Pro Android TV Hard Drive Replacement

Geschrieben von: Jimmy Chen
  • Kommentare: 4
Nvidia Shield Pro Android TV Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

When your Nvidia Shield Pro Android TV is not booting up, experiencing lag, or producing clicking noises when it boots, use this guide to help remove/replace your hard drive. The only tools required for this procedure are the T6 Torx screwdriver and the plastic opening tool. This process of replacing your hard drive is not at all difficult. Please do keep in mind that the wires are relatively fragile, so be very gentle when you interact with them.

  1. tD2yiBFw4AeFPpYC
    tD2yiBFw4AeFPpYC
    eP1aODe3nauq1C2g

    • Flip to the back side of your Nvidia Shield Pro Android TV.

    • To open the bottom cover of the Nvidia Shield, start from the corner and slide your plastic opening tool across the gap.

    • If using a plastic opening tool to open the bottom cover is difficult, try using a metal spudger.

  2. 61utrqn33OE6DEFS
    61utrqn33OE6DEFS
    T5TpTOKivkIDwFHS
    A3baigDCwTU36SPv

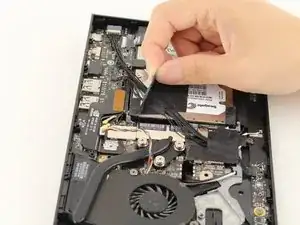

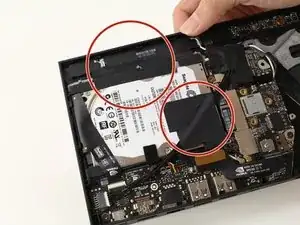

    • Remove the two pieces of adhesives found at the top and the bottom side of the hard drive.

    • Put the two adhesives aside. Make sure to keep them flat so that you can put them back on after.

  3. cSZ3pAZJXPdSoLm5
    cSZ3pAZJXPdSoLm5
    aJOGusNXG1mPLZTr
    dZyXbBNqROFKENMt

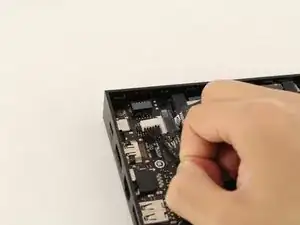

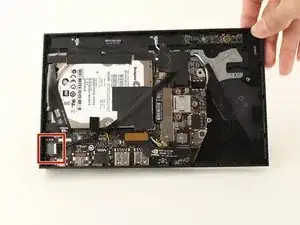

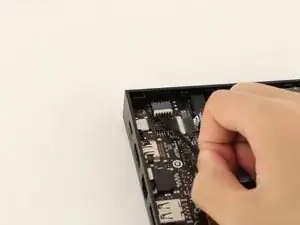

    • Detach the pack of wires by pulling it away from the socket.

  4. iYKsitjyBoeI1Rea
    iYKsitjyBoeI1Rea
    iDq1bfjFbkHBNQJe
    MuOJHZT3aaAd6dJw

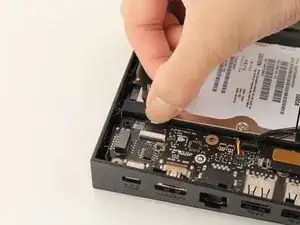

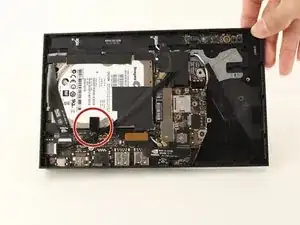

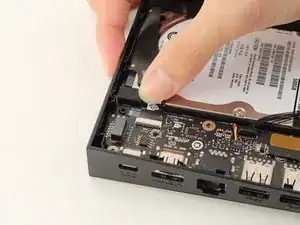

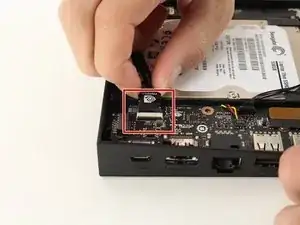

    • Next to the empty socket where the black wires were attached to the I/O board (refer back to Step 2), detach the plastic strap from the I/O board by pushing the strap away from the socket using your finger.

    These are horrible, potentially damaging instructions. DO NOT try removing the ribbon cable without unlocking the connector first. Gently lift the black, plastic tab on the end by flipping it up toward the white ribbon cable connector. It will hinge all the way up until it moves freely. This is not pictured above, all three images show the tab in the locked position.

    Now the ribbon cable should easily slide out of the connector without any additional force. If it doesn't, the tab is likely not lifted up all the way.

    Be very careful with the ribbon cable and do not bend it. Simply applying force until it slips out as suggested above could cause irreversible damage.

    J J -

  5. urNMxOnTcWhUtHhg
    urNMxOnTcWhUtHhg
    xGmsmiJj5RyLAXxo

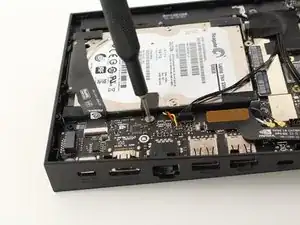

    • Remove the screw on the metal piece using a T6 Torx screwdriver and put away the metal piece after removing the screw.

  6. 6ABZ4yD5ALkokUSj

    • Gently pull the hard drive out of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
