Nvidia Shield Pro Android TV I/O Board Replacement

Geschrieben von: Jimmy Chen
  • Kommentare: 3
Nvidia Shield Pro Android TV I/O Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

20 - 30 Minuten

Einleitung

If your charging port, USB ports, ethernet port, or HDMI port on your Nvidia Shield Pro Android TV are not working properly, use this guide to help remove/replace your I/O board on your Nvidia Shield Pro. The only tools required for this procedure are the T6 Torx screwdriver and the plastic opening tool. Some steps may be difficult due to the cluster of screws and wires to be located, but do not fret, this guide will help you locate all the parts you need to remove.

  1. tD2yiBFw4AeFPpYC
    tD2yiBFw4AeFPpYC
    eP1aODe3nauq1C2g

    • Flip to the back side of your Nvidia Shield Pro Android TV.

    • To open the bottom cover of the Nvidia Shield, start from the corner and slide your plastic opening tool across the gap.

    • If using a plastic opening tool to open the bottom cover is difficult, try using a metal spudger.

  2. 61utrqn33OE6DEFS
    61utrqn33OE6DEFS
    T5TpTOKivkIDwFHS
    A3baigDCwTU36SPv

    • Remove the two pieces of adhesives found at the top and the bottom side of the hard drive.

    • Put the two adhesives aside. Make sure to keep them flat so that you can put them back on after.

  3. cSZ3pAZJXPdSoLm5
    cSZ3pAZJXPdSoLm5
    aJOGusNXG1mPLZTr
    dZyXbBNqROFKENMt

    • Detach the pack of wires by pulling it away from the socket.

  4. iYKsitjyBoeI1Rea
    iYKsitjyBoeI1Rea
    iDq1bfjFbkHBNQJe
    MuOJHZT3aaAd6dJw

    • Next to the empty socket where the black wires were attached to the I/O board (refer back to Step 2), detach the plastic strap from the I/O board by pushing the strap away from the socket using your finger.

    These are horrible, potentially damaging instructions. DO NOT try removing the ribbon cable without unlocking the connector first. Gently lift the black, plastic tab on the end by flipping it up toward the white ribbon cable connector. It will hinge all the way up until it moves freely. This is not pictured above, all three images show the tab in the locked position.

    Now the ribbon cable should easily slide out of the connector without any additional force. If it doesn't, the tab is likely not lifted up all the way.

    Be very careful with the ribbon cable and do not bend it. Simply applying force until it slips out as suggested above could cause irreversible damage.

    J J -

  5. urNMxOnTcWhUtHhg
    urNMxOnTcWhUtHhg
    xGmsmiJj5RyLAXxo

    • Remove the screw on the metal piece using a T6 Torx screwdriver and put away the metal piece after removing the screw.

  6. 6ABZ4yD5ALkokUSj

    • Gently pull the hard drive out of the device.

  7. mxRnI6OkGAOsFXIX
    mxRnI6OkGAOsFXIX
    MM6lhWUrfIomjfpx
    CnVLFjvMJ5DkrZXb

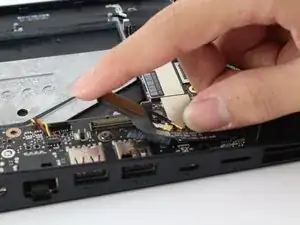

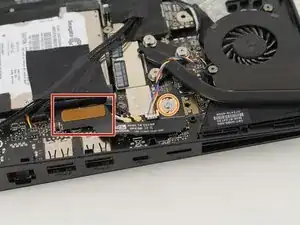

    • Detach the brown side of the connector from the I/O board by pulling it upward.

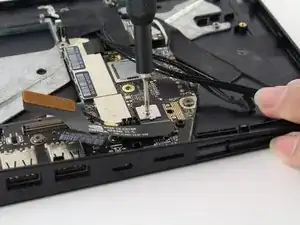

    • Remove the screw from the silver plate using a T6 Torx screwdriver.

    • Put the cable aside after removing it.

  8. EMW2xUHjCgNqmus4
    EMW2xUHjCgNqmus4
    BworlXZHRS63CE2i

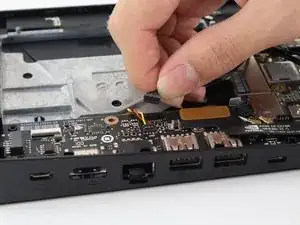

    • Detach the small bundle of black wires from the I/O board by gently pulling upward.

    • Be very gentle because the wires are very fragile.

  9. kCJEhhTssliPQYVj
    kCJEhhTssliPQYVj
    S4PqkTcyh2G2aCAc

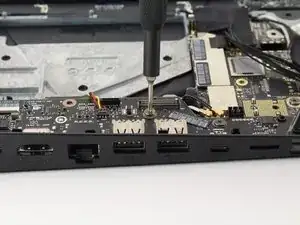

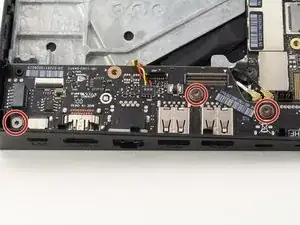

    • Remove the three T6 Torx screws from the I/O board.

  10. BxMRBqYtkOhHuuvD
    BxMRBqYtkOhHuuvD
    hG5QCNmbfwKKVtXJ
    kWqlkmSvhNsXIxIQ

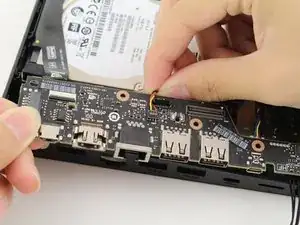

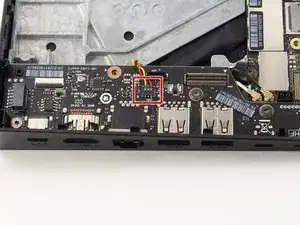

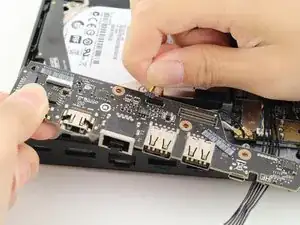

    • Detach the multi-colored (red/yellow/black) wire from the I/O board by pulling it away from the socket.

  11. wEMtVDvdagThxLLF

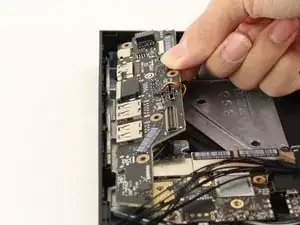

    • Gently remove the I/O board by sliding it away from the exterior input/output sockets on your Nvidia Shield Pro.

Abschluss

To reassemble your device, follow these instructions in reverse order.
