Einleitung
You will need to replace the battery in your controller if it is not holding a charge or your controller is not turning on. When taking apart the controller, be careful as the buttons are not held in place by anything and can easily fall out.
Werkzeuge
-
-

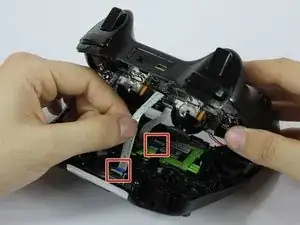

Use the angled tweezers to remove the vibration motor cable, moving it upward from its socket.
-
Lift the vibration motor out of the front case.
-
Repeat for the other side.
-

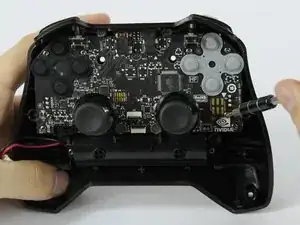

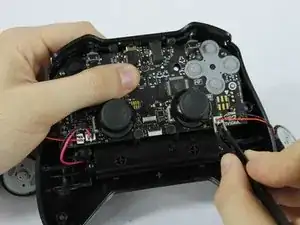

Use the angled tweezers to remove the battery cable, moving it upward from its socket.
-
-
-

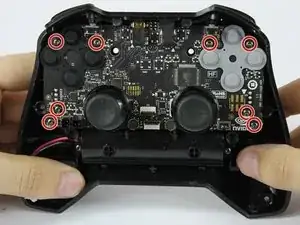

Using the T6 Torx screwdriver, remove the indicated eight screws from the logic board.
-

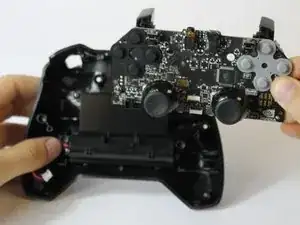

Lift the logic board away from the front case.
-
-
-

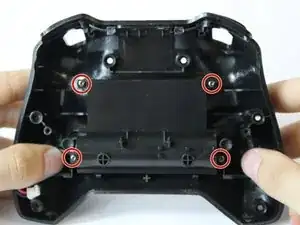

Using the T6 Torx screwdriver, remove the indicated four screws from the panel.
-

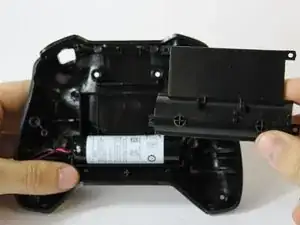

Remove the panel from the front case.
-
Lift the battery from the front case to remove it.
-
To reassemble your device, follow these instructions in reverse order.
