Nvidia Shield TV 1st Generation Controller Buttons Replacement

Geschrieben von: Jessica Tran
  • Kommentare: 0
Nvidia Shield TV 1st Generation Controller Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

You will need to replace the buttons in your controller if they stick easily or don't press down all the way. When removing the buttons, be careful as the buttons are not held in place by anything and can easily fall out.

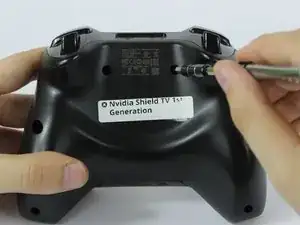

  1. jhQEgxfPRptl3nni
    jhQEgxfPRptl3nni
    gWfLHbPvVgYRNuU3

    • Remove the indicated six screws using the T6 Torx screwdriver.

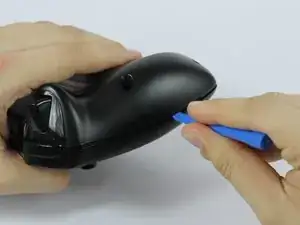

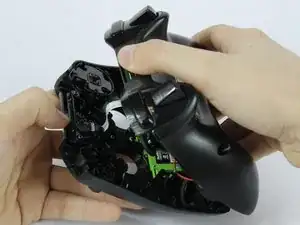

  2. 43BthhBWNqw3hWXr
    43BthhBWNqw3hWXr
    NpXLrelSolkEeVfZ

    • Use the plastic opening tool to pry the face of the controller from the body.

    • Make sure the controller is face down during this step as the buttons can easily fall out.

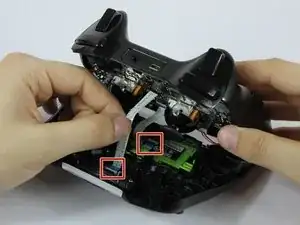

  3. laYNsqnanLnksMmB

    • Carefully remove the indicated ribbon wires from the face of the controller.

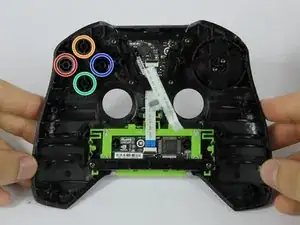

  4. yRNhSuI1UCl22Nj2
    yRNhSuI1UCl22Nj2
    ShsPZycyFjHnxfgW

    • Gently push the buttons towards you that you wish to replace.

    • A button

    • B button

    • Y button

    • X button

Abschluss

To reassemble your device, follow these instructions in reverse order.
