Nvidia Shield TV 1st Generation I/O Board Replacement

Geschrieben von: Joshua Neally
  • Kommentare: 4
Nvidia Shield TV 1st Generation I/O Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

If the ports on the I/O board are broken or any other components have failed, the I/O board may need replacement. Follow the steps in this guide to replace the I/O board in your SHIELD TV.

  1. fljCiicwTOHXARrW

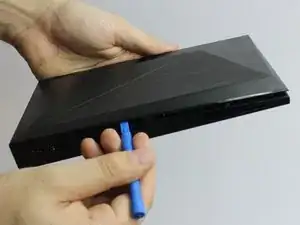

    • Flip the device over and use a plastic opening tool to remove the bottom cover.

  2. fdKLGjkjH6cbhpEO
    fdKLGjkjH6cbhpEO
    5U33lgDB5EUUv6SH

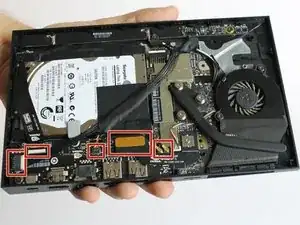

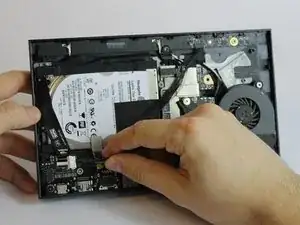

    • Remove the indicated cables and ribbon wires.

  3. BwdnwRIwNLxio2vU
    BwdnwRIwNLxio2vU
    CYKFBYOnKQhQXXZs

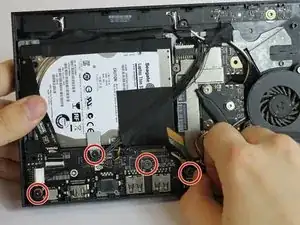

    • Remove the indicated four screws using the T6 Torx screwdriver.

  4. Y4VH4vMydoOo1LOy

    • Carefully tilt and pull out the I/O board from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
