A camera lens on any device is naturally exposed to the elements of nature to obtain the clearest photo; however, this leaves the lens susceptible to damage and cracking. Cameras are used extremely frequently, especially on a device as portable as the Nvidia Shield Tablet. Follow this guide to replace both cameras on your tablet.

  1. NkOor3tMvFo4xqVS
    NkOor3tMvFo4xqVS
    eILDIgSCOYt6boZi
    • First, remove the stylus from your tablet.

  2. YjVX4JVmOn3BZPMW
    YjVX4JVmOn3BZPMW
    igE2APqiTwnuIhTd
    aotNPhvqRGvyhLtd
    • Set the tablet so the buttons, microSD, and stylus port are facing you.

    • Open the microSD slot.

    • Using the flat end of the spudger tool, carefully pry open the case starting from the microSD slot, slowly sliding the spudger along the inside edge of the case.

    • You may want to put on your anti-static wrist strap at this point as the motherboard will be vulnerable to physical touch and electrostatic shock after the casing is removed.

  3. w5JWCQtAj26NIMsO
    w5JWCQtAj26NIMsO
    mcKFJDJGtYNlZ5gx
    • As you remove your case, be aware of small clips along the edges.

    • Finally, set the old casing aside.

  4. juZnhe1hYCHs3o1S
    • Orient your tablet so that the top of the tablet is furthest away from you.

    • Locate the top speaker, a black semi-rectangular piece on the top right side of the tablet.

  5. 1wlcOMxyisAodGBF
    • Remove the two 3.0 mm Phillips #00 screws securing the speaker.

  6. ljVHO2GiKtdAPVWc
    ljVHO2GiKtdAPVWc
    snaUEEkBpOxjAIpI
    3brYEZpsNnSAigxO
    • Gently pry the speaker up with the flat end of a spudger.

    • Use a plastic opening tool to peel up the tape covering the speaker wire.

  7. g5yNIdwoCcQ6IAOD
    g5yNIdwoCcQ6IAOD
    TkZZfwJods42XtGM
    • Next, with a gentle but firm grip, pull the audio input ribbon with the precision tweezers.

    • Finally, unplug the power source from your speaker using the precision tweezers.

    • Make sure you are using your anti-static wrist strap.

  8. PjGYkhhTnEk2TiOm
    PjGYkhhTnEk2TiOm
    r2ZKEGhS1pZZ2vAw
    XQW1tD2R4RWYrcxd

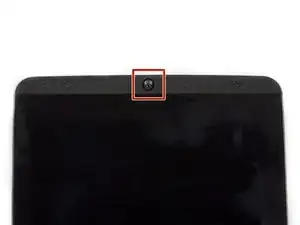

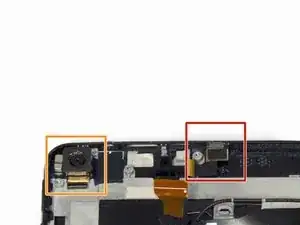

    • Having removed the speaker, locate the front-facing camera resting just underneath the speaker.

    • The rear-facing camera is on the left side of the tablet and it aligns with the camera hole on the back casing of your tablet.

  9. DRLhWvCFx16SPP2x
    DRLhWvCFx16SPP2x
    Cot6ys2lGPkAovVR
    pVGoYioQglA6KNTd

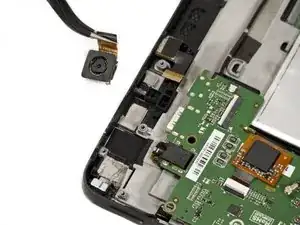

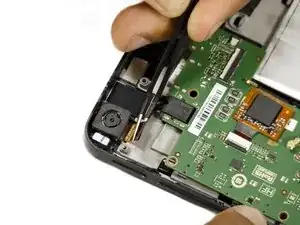

    • Gently unplug each camera using the precision tweezers.

    skipped steps for removing main board

    Kris Arem -

Abschluss

To reassemble your device, follow these instructions in reverse order.
