Nvidia Shield Tablet Rear Case Replacement

Geschrieben von: Molly Bauer
  • Kommentare: 1
Nvidia Shield Tablet Rear Case Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

15 - 20 Minuten

Einleitung

The case of any device is always the first line of defense against any kind of external damage. The Shield Tablet in particular is known to be susceptible to casing cracks, specifically at the corners. This guide will show you the step-by-step instructions required to replace your cracked case.

  1. NkOor3tMvFo4xqVS
    NkOor3tMvFo4xqVS
    eILDIgSCOYt6boZi

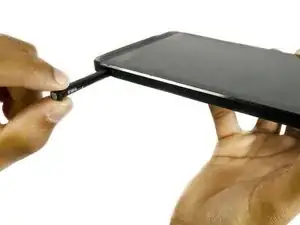

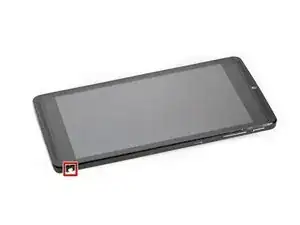

    • First, remove the stylus from your tablet.

  2. YjVX4JVmOn3BZPMW
    YjVX4JVmOn3BZPMW
    igE2APqiTwnuIhTd
    aotNPhvqRGvyhLtd

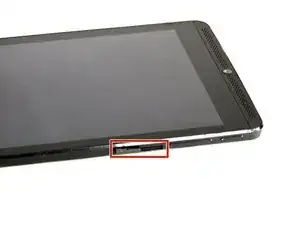

    • Set the tablet so the buttons, microSD, and stylus port are facing you.

    • Open the microSD slot.

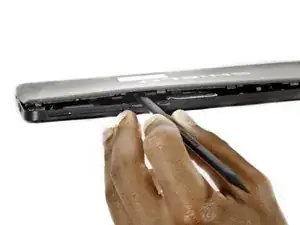

    • Using the flat end of the spudger tool, carefully pry open the case starting from the microSD slot, slowly sliding the spudger along the inside edge of the case.

    • You may want to put on your anti-static wrist strap at this point as the motherboard will be vulnerable to physical touch and electrostatic shock after the casing is removed.

  3. w5JWCQtAj26NIMsO
    w5JWCQtAj26NIMsO
    mcKFJDJGtYNlZ5gx

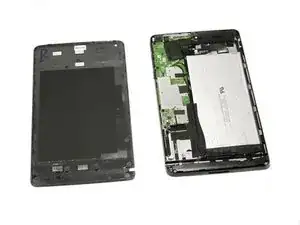

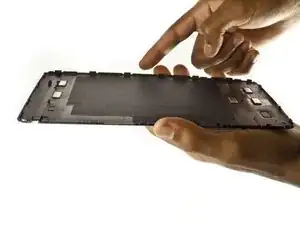

    • As you remove your case, be aware of small clips along the edges.

    • Finally, set the old casing aside.

Abschluss

To reassemble your device, follow these instructions in reverse order.
