OLPC XO-4 Touch Screen Frame Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

Use this guide to remove the frame from the screen on your OLPC XO 4.0 Touch.

  1. IVDjFWXGlqHFaVWw

    • Turn the laptop upside-down, with the handle facing away from you.

  2. d5MasQwOp11X2VZr
    d5MasQwOp11X2VZr
    sRU3hllA2YskCHfU

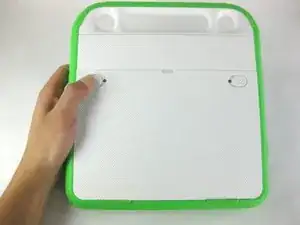

    • Pull the lock tabs towards the green outer edges of the laptop.

    • Hold the left lock tab in the unlock position until the battery is completely removed in the next step.

  3. ZWV1wud4mI1HUWGt
    ZWV1wud4mI1HUWGt
    UnbfciGCtddNpqAL

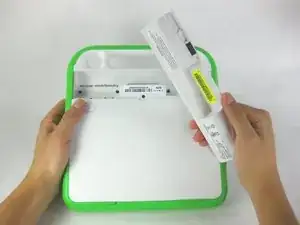

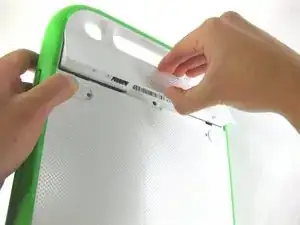

    • Lift up on the middle of the battery to remove it from the device.

  4. ZNwppNTdPuVCNHlb
    ZNwppNTdPuVCNHlb
    PdDWKtkFVQFMB64Y
    XJm6YIlG5kYTADAK

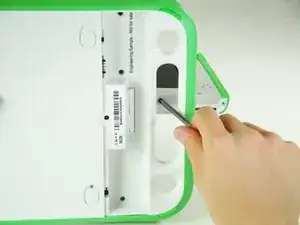

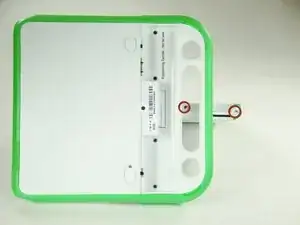

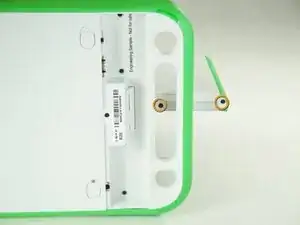

    • Remove the two 4mm Phillips #1 screws underneath the screen on the right-hand side.

    • Rotate the screen 180° and remove the other two screws.

    • You will have to put your screwdriver through the handle in order to reach the middle screw for both sides.

  5. I1Z2kk1JF2L4WZHc
    I1Z2kk1JF2L4WZHc
    Nx2miaLWtnYXwsBB
    SXaNNPsDjPeOS2qY

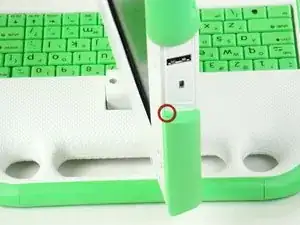

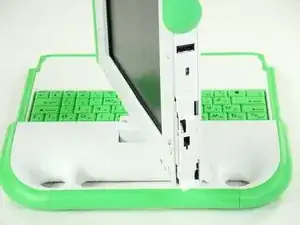

    • Remove the green side panel by pressing down on the small green button on the top and sliding the panel up.

    • Repeat the step above for the panel on the other side.

  6. MDDSedKaPcB4QX4L

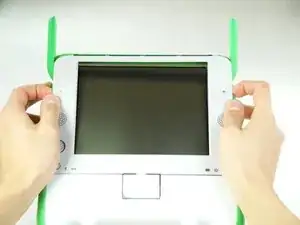

    • Be careful not to pull the bottom too far out because a ribbon cable is under the frame and can easily break.

    • Gently lift up the lower part of the frame and pull it down to free the screen frame.

  7. pXcPMs3Be4Hd1snY
    pXcPMs3Be4Hd1snY
    ZVcYoG1MdgEQixp4

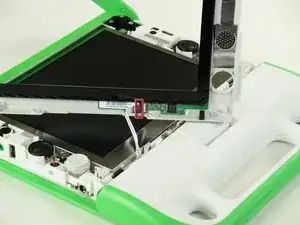

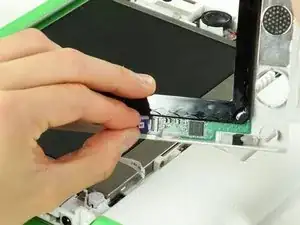

    • Lift the black connector and pull the ribbon cable out by the purple tab, freeing the frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
