Oculus Quest 2 Demontage

Geschrieben von: sctanf

Kommentare: 82

Schwierigkeitsgrad

Schwierig

Schritte

Zeitaufwand

1 - 2 Stunden

Einleitung

Das Oculus Quest 2, auch Meta Quest 2 genannt, ist ein von Facebook (ehemals Oculus) entwickeltes VR-Headset und die zweite Iteration des ursprünglichen Quest. Das Quest 2 kann als eigenständiges Headset oder in Verbindung mit einem Computer betrieben werden, wenn es entweder über ein USB-Kabel oder Wi-Fi angeschlossen wird. Das Headset läuft mit einem Qualcomm XR2 und 6 GB RAM. Es bietet eine Auflösung von 1823 x 1920 pro Auge. Achte darauf, dass du alle Schrauben im Auge behältst, denn dieses Headset hat eine Menge davon.

Werkzeuge

Schritt 1

Entferne die sechs T2 Schrauben, die das Futter des Headsets fixieren.

It’s actually 6x T3 screws. A T2 driver is smaller than the groves of the T3 screws, will slip and strip.

Steven -

It may depend on your bit manufacturer. I used an ifixit T2.

Daniel Yoder -

What screw size are these? I need to replace one but I don't know what to search for

Michele Bright -

I have T2 on mine as well

weiwei.e.sun -

What if one of the screws strips? We are using a t3 and it got all screws out but one. Now we cannot get that last screw out

AliD -

Schritt 2

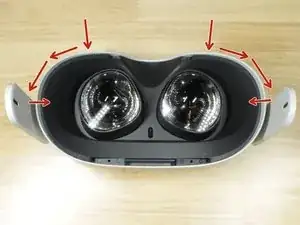

Setze nacheinander ein Plektrum auf jeder Seite in der Nähe der Nasenauflage ein, schiebe es zur Seite und heble hoch.
Wenn beide Seiten gelöst sind, dann hebe die Abdeckung vorsichtig heraus und klappe sie so, dass sie außerhalb des Headsets liegt.
Der Näherungssensor ist immer noch angeschlossen, achte auf das Flachbandkabel und beschädige es nicht.
Löse die kleine schwarze Raste des ZIF-Verbinders und ziehe das Flachbandkabel ab.
Das Kabel ist leicht angeklebt, sei vorsichtig, wenn du es abziehst.
Achte beim Zusammenbau auf die richtige Position des Kabels. Es darf nicht schwer gehen, die kleine schwarze Raste wieder zu befestigen. Wenn dieses Kabel nicht richtig angeschlossen ist, dann kann der Bildschirm schwarz bleiben und das Gerät schaltet sich nach kurzer Zeit von selbst aus.

Hard as rock, day 2

Antonio Rico Torres - 24/08/21

I’m going to do this in about 2 month and this part seems difficult any tips?

Someone -

Schritt 3

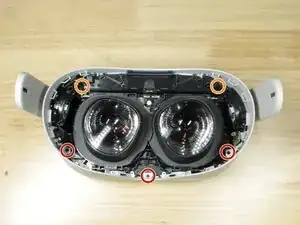

Entferne die drei Kreuzschlitzschrauben #0
Entferne die beiden Kreuzschlitzschrauben #0
Die beiden orangenen Schrauben oben sitzen sehr tief und benötigen vielleicht einen Schraubendreher mit längerem Schaft.

Does iFixit have a set with a screwdriver for accessing the left top screw shown here? The space there is very narrow.

S-ed - 15/11/21

The correct size for these five screws is P000, not P0.

Matthew Foreman -

where can I look up the naming scheme for that screw size you’r etalking about?

is that the same as the phillips PH000?

is that describing the thread dimensions or the head of the screw, or both?

I’ve looked up the screw dimensions / where I can get spares but can’t seem to find consistent results for this one,

I want to know the screw’s head and thread measurements so I can recreate a custom oculus shell in CAD and have the proper screws and parts all fit back together properly.

_latch_key_ - 07/02/22

The ph screw driver was wrong and I stripped one of the screws thanks a lot ifixit

gavilanesadan@yahoo.com -

Of note; the screws are PH000 and they are especially soft and easy to strip.

Alexander Owen -

Schritt 4

Um die Rasten zu lösen, muss an die vier Stellen ein Pick (Plektrum) eingesteckt werden.
Entferne die vordere Abdeckung von der Oculus Quest 2.

I found it best just to gently pull it off from the side with my finger nails. There is nothing connected to this cover, yet be careful enough not to break the plastic clips.

Padraic Hoselton -

I don’t need to go to any further steps because I’m only replacing the front shell but still it is a good thing I found out about this tutorial or else I would be a mess right now

Someone -

Schritt 5

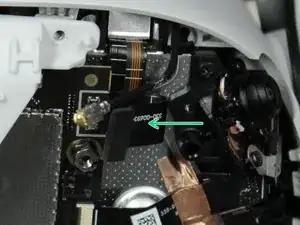

Trenne die WiFi Antenne ab.

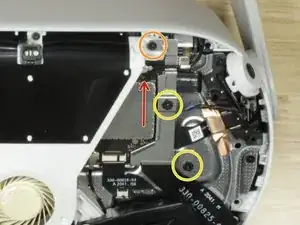

Entferne die Kreuzschlitzschraube #0
Entferne die beiden Kreuzschlitzschrauben #0
Ziehe den Akkustecker heraus.
Denke beim Zusammenbau daran, das Flachbandkabel zum Akku teilweise unter das Logic Board zu legen.

After I remove bracket I found that battery cable already disconnected.After connect it my problem of quest 2 not charge after drop is fix. Thank you for helpful guide.

Korakot Ano -

Schritt 6

Trenne die Bluetooth-Antenne ab.
Zwei Kreuzschlitzschrauben #0
Vier Kreuzschlitzschrauben #0
Zwei Kreuzschlitzschrauben #0
Hebe die Antenne von der Oculus Quest 2 weg.

Schritt 7

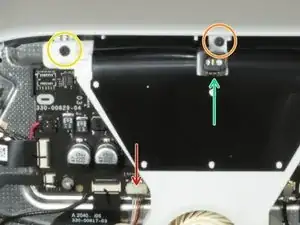

Ziehe den Stecker vom Lüfter.
Eine T2 Schraube
Eine Kreuzschlitzschraube #0
Entferne die vordere LED der Oculus Quest 2.
Entferne den Lüfter von der Oculus Quest 2

Holas, quien me dice que es la parte negra del centro de las gafas, que es como una cinta negra grande

Jhon Hoyos -

Schritt 8

Vier Kreuzschlitzschrauben #0
Entferne den Kühlkörper.

Thermal Paste Present

saulcutting -

Schritt 9

Löse den Stecker der seitlichen WiFi-Antenne.
Trenne das Kabel zum USB-C-Anschluss und zur Kopfhörerbuchse ab.
Hebe die Lautsprecherkabel hoch und trenne sie ab.
Löse die Kabel zu den oberen Kameras, zur Einschalttaste und zur Status-LED, zu den unteren Kameras und zur Lautstärkewippe ab.
Trenne die Verbindungskabel der beiden unteren Kameras ab.
Löse die Kabel zur vorderen LED, zum IPD-Sensor und zum Annäherungssensor ab.
Trenne das Bildschirmkabel ab

Does anyone know where I could get a replacement camera. one of my quest 2 cams is shattered due to a fall :)

Christopher elsas -

at aliexpress you can get all the parts

Kaha -

Who made the camera module?

Алексей Лисовицкий -

Dónde puedo comprar el Flex de una de las cámaras superiores

Jhon Hoyos -

Schritt 10

Eine 3,5mm Sechskantschraube
Vier Kreuzschlitzschrauben #0
Entferne die Hauptplatine.

Schritt 11

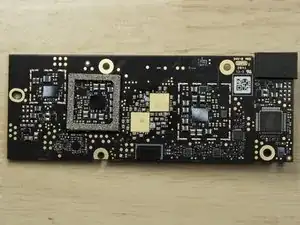

Nahaufnahme der Hauptplatine.

Any chance to list all chips on board?

ksazazel - 06/03/21

it looks like there is a 64gb sandisk chip that might come off with some hot air :)

(but this board look completely different than the quest 2 boards offered on eBay....)

nitrous dude -

Schritt 12

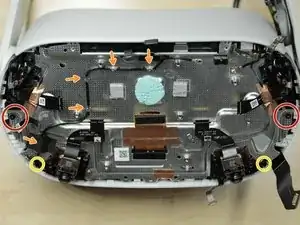

Zwei Kreuzschlitzschrauben #0
Zwei Kreuzschlitzschrauben #0
Fädle das seitliche WiFi Antennenkabel aus.

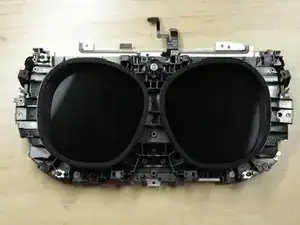

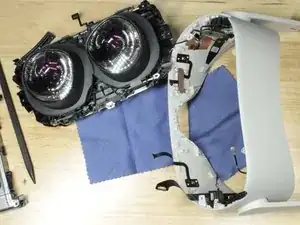

Entferne den Mittelrahmen vom Gehäuse.

On the upper right hand side of this image next to the first WiFi antenna you unplug, there is a ribbon cable that is held down with a STRONG adhesive that is very difficult to get off. I had to heat up the plastic tool I was using and the cable itself to soften it enough to pull of. Be very careful with it.

Gavin Alton -

Schritt 13

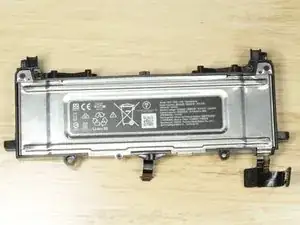

Vier Kreuzschlitzschrauben #0 halten den Akku im Gehäuse.
Die Akkuabdeckung ist mit zwei T2 Schrauben befestigt.
Die Oculus Quest 2 hat eine Akkulaufzeit von 2,5 Stunden mit einem durchschnittlichen Verbrauch von 5,6 Watt.

What type are the batteries

And where can i buy the.

Edo -

Schritt 14

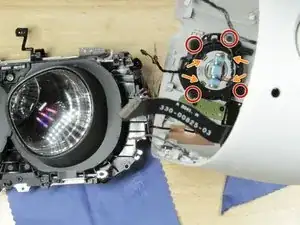

Jeder Halter/Lautsprecher ist teilweise durch ein Plastikstück befestigt, das mit vier Kreuzschlitzschrauben #0 festgeschraubt ist.
Löse die vier Metallclips an jedem Halter/Lautsprecher.
Die Plastikstücke, mit denen die Halter befestigt sind, können entfernt/abgedreht werden, so dass sich die Halter vom Rest des Gehäuses lösen.

Can someone please elaborate on how to remove the metal clips on the arms/speakers?

Is there a special tool or technique?

Fixxif -

Same here. I can’t figure out how to remove the clips.

Colin Harris -

Shape of the clip: https://postimg.cc/qtzJbBDR

Václav Tomáš -

anyone tell me how to can remove this arms speaker? :(

thang tan -

shape the pic

https://www.droidshop.vn/wp-content/uplo...

Ta Truong -

more the pic https://www.droidshop.vn/wp-content/uplo...

Ta Truong -

I would like to know how too! I need to replace my speaker but i doesn't find the technic for metal clip. Thank you

Patrick Potvin - 08/04/23

Schritt 15

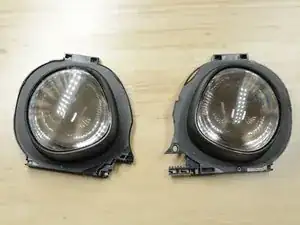

Die Linsen gleiten auf Schienen, die von kleinen Metalllaschen gehalten werden. Das Entfernen der Schienen legt den Bildschirm frei.
Der Bildschirm ist durch eine Plastikfolie geschützt. Achte auf Staub und zerkratze nichts.

What do the screens look like under the lenses? How and where do the cables transmitting the image and power to the screens?

radgesaidor -

Can you add a bit of information about the charging port. I need to replace but not sure best way to access.

Catherine Kendrick -
