Oculus Rift Development Kit 2 Camera Motherboard Replacement

Geschrieben von: Anthony Vasquez
  • Kommentare: 0
Oculus Rift Development Kit 2 Camera Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

If the device is not tracking motion properly this could be due to a broken camera motherboard. Common causes for motherboard failure include being exposed to static shock, overheating, or component failure.

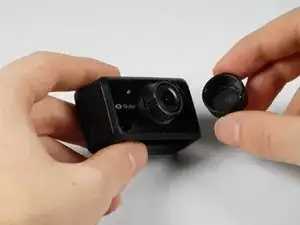

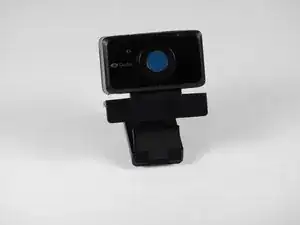

  1. HkFStxXJO6O54Tl3
    HkFStxXJO6O54Tl3
    L5tDgtFVfKmnoOWC

    • Remove the filter from the camera as shown.

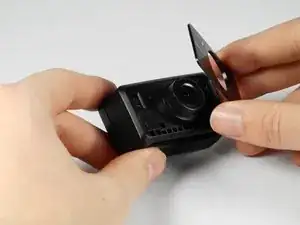

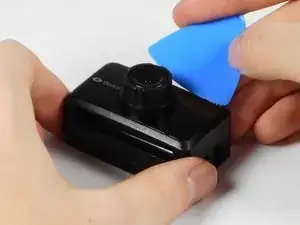

  2. C5ASGJ4e3AVMiOea
    C5ASGJ4e3AVMiOea
    QfW6yOWnPHsVakuo

    • Remove the cover plate from the front face of the camera using the iFixit Opening Pick.

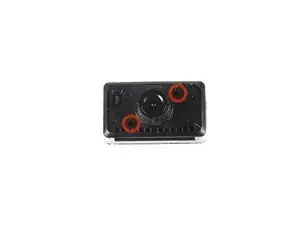

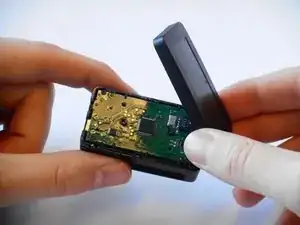

  3. lFPcuMCC2KGD2R11
    lFPcuMCC2KGD2R11
    2VvTK1ClEdysugu1

    • Remove the two 3/16" J #000 screws.

    • Lift the back plate off.

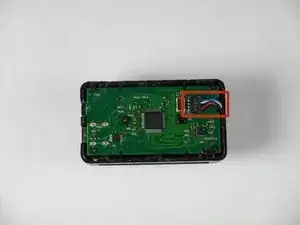

  4. Q6x6VwrLTbZYTjG1

    • Gently tug on the wires to free them from the motherboard.

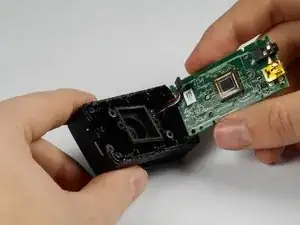

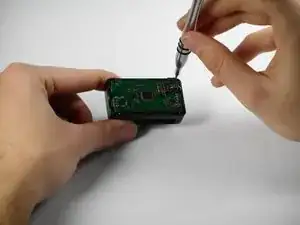

  5. X4gJQLHZHUhCkaqg
    X4gJQLHZHUhCkaqg
    W5t1hpdrpsk2Fd4C
    ZyHQXJKhTY1RkvIy

    • Remove the four 3/16" Phillips #000 from the four corners of the motherboard.

    • Remove the two 1/4" Phillips #0 screws shown to release the motherboard from the enclosure.

Abschluss

To reassemble your device, follow these instructions in reverse order.
