Oculus Rift Development Kit 2 Display Screen Replacement

Geschrieben von: Adam
  • Kommentare: 3
Oculus Rift Development Kit 2 Display Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

30 Minuten

Einleitung

If there are cracks or mars in the video display, the display screen may be broken.

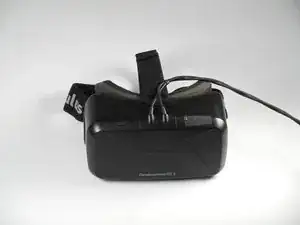

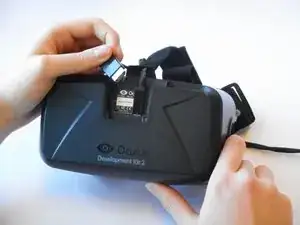

  1. UAZGNXSrTl3mamsN
    UAZGNXSrTl3mamsN
    MLgbNqGq6mo1NJUL
    COy5agPOxmAjESRU

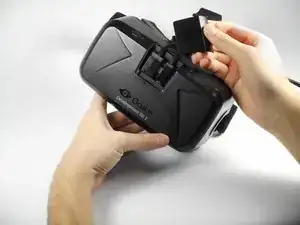

    • Remove front cover plate.

    • Unplug the USB and HDMI cables from the Oculus Rift DK2.

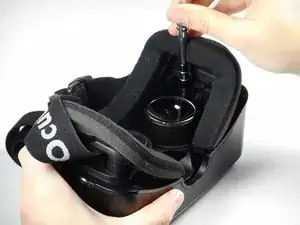

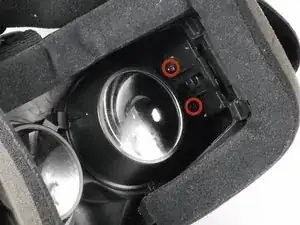

  2. mVrcEgfkWUnfICCj
    mVrcEgfkWUnfICCj
    uPwKikBPmLs22cMb
    VbUeQMR6OjRqIWgc

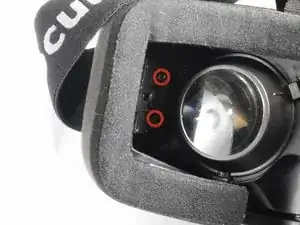

    • Remove the four 3/8" Phillips #0 screws from the inner portion of the headset.

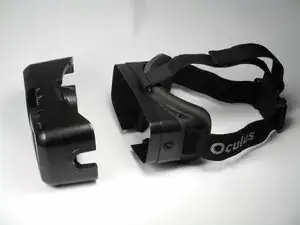

  3. DNcPgi15gdnOPRnO
    DNcPgi15gdnOPRnO
    SHhwfwUcUwfMNwlY

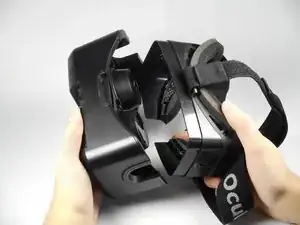

    • With the screws removed, gently pull the headband frame apart from the headset.

  4. ahwKSW2IBHSjUeaT
    ahwKSW2IBHSjUeaT
    ZpxPffNKhDKQTt6E

    • With the Oculus facing up, twist the right lens clockwise and lift it out. Repeat for the left lens twisting counterclockwise instead.

    I had a second hand unit… A lenses were marked and scratched… B lenses still had covers on and were new… so…. I swapped the lenses as they are the same glass… just the B housing is shallower… took 2 minutes and I now have clean, smooth and crystal vision A mounts…. like new.

    darrenscook -

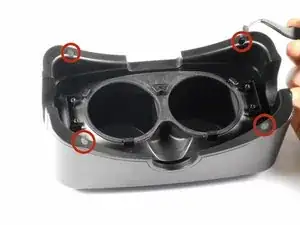

  5. JfsZsUQdch1jISYI

    • Using tweezers, carefully lift the four rubber plugs as shown. They are a bit snug and you may need to jiggle them free with the tweezers.

  6. meQl2UktrnfmjLN2

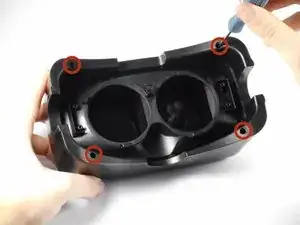

    • Remove the four 3/8" screws attaching the eyewear enclosure to the front casing.

    • Read the next step before removing the faceplate!

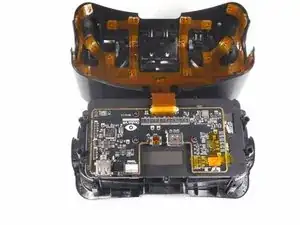

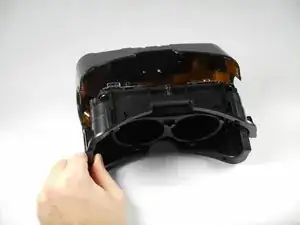

  7. 1VGjaTMJ5AvOJQAs
    1VGjaTMJ5AvOJQAs
    kTCqyXPIYJdHlgPZ

    • Carefully separate the faceplate and the cover. Gently rest the cover plate on top of the faceplate as shown in the pictures.

    • Do not use excessive force when separating these two pieces. There is a delicate ribbon cable connected to each.

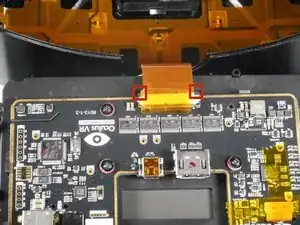

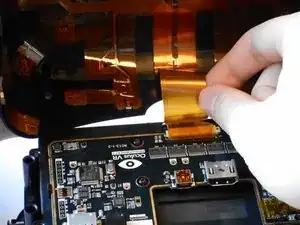

  8. V36eU13ZIOywJsPM
    V36eU13ZIOywJsPM
    ntIZU3VpfYdsEMND

    • Gently pull out the small side tabs on the ribbon cable connector as shown to release the cable.

    • Push the tabs away from you, with the headset oriented as pictured. Carefully slide the ribbon cable out.

    • The headset should now be two separate pieces.

  9. pb4v5QLGhKg4F6Ui
    pb4v5QLGhKg4F6Ui
    4vlV6wdeaFhxqMgk
    C5GdeYWc4DSs4EQo

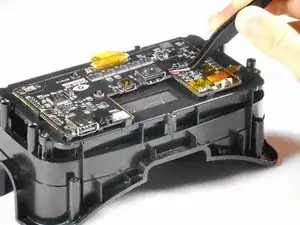

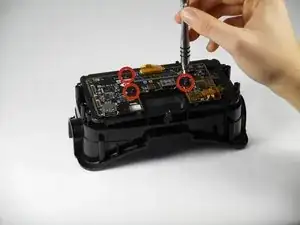

    • Unscrew the three 1/4" Phillips #00 screws as pictured and use the tweezers to lift them out.

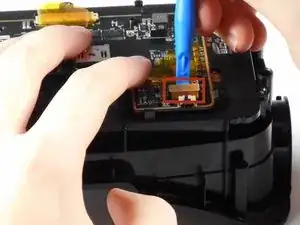

  10. aWt441YtfNpgLBhC

    • Lift the tape and gently pry up the video data ribbon cable using the plastic opening tool as shown.

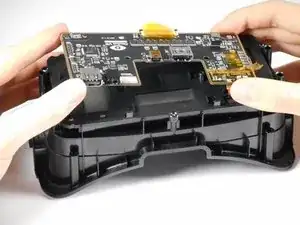

  11. AWfJxRAcikTBQ5ZM
    AWfJxRAcikTBQ5ZM
    6QSjoJfJwSet1xVk
    DJPUXhbGwduXdIKV

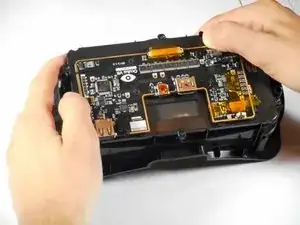

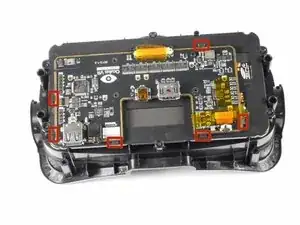

    • Gently pry back the motherboard clips to release the motherboard. The motherboard should now lift free.

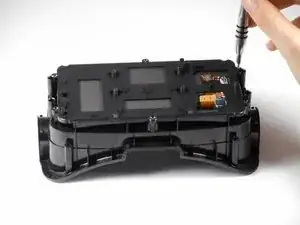

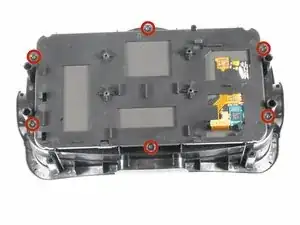

  12. FiM5gQ6OWHPoHABw
    FiM5gQ6OWHPoHABw
    Ga1OwEneIsqfOD3H
    kIN4pXOxPsDvXhMT

    • Remove the six 1/4" Phillips #1 screws as shown. There should be two on each short side, and one on each long side.

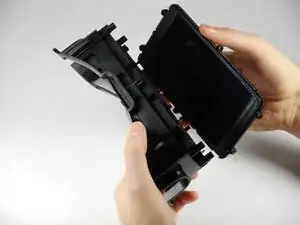

    • Gently lift the plastic screen holder and display screen away from the remaining piece of the faceplate.

Abschluss

To reassemble your device, follow these instructions in reverse order.
