Olympus 850SW Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

7

Zeitaufwand

1 - 5 Minuten

Einleitung

Ensure you have a fully charged battery, and that it is the correct battery if you have purchased a new one. This camera will accept a rechargeable Olympus LI-42B Lithium-Ion battery.

  1. YILPtjpUDO6yQ3nl

    • Locate the battery compartment on the bottom panel of the camera.

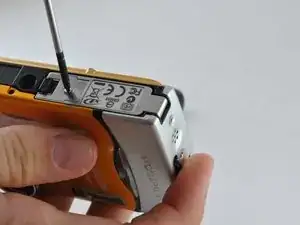

  2. nbTBladRDbZhv6aA
    nbTBladRDbZhv6aA
    Ni1jrmVidAgNr2Yb

    • Using a PH00 Phillips Screwdriver, unscrew the one screw located on the latch.

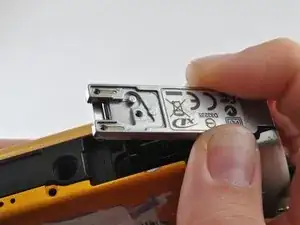

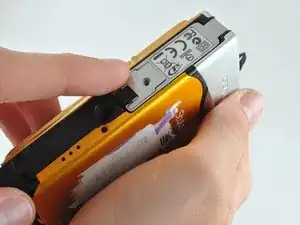

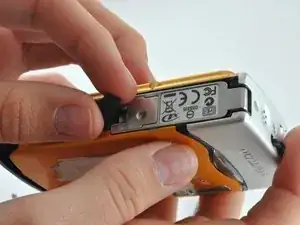

  3. ZXmtR54lc1tTUF2u
    ZXmtR54lc1tTUF2u
    cjB6QsVipvPVBvRx
    x2ytUTWxXGDkqYSw

    • Find the arrows on the compartment, remove the small black plastic piece, and release the latch.

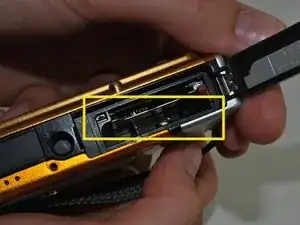

  4. CDcdu5hKyXQH3bSo

    • Allow the latch to completely open and insert the battery, with the writing side up.

    • The battery slot is the bigger slot. The smaller slot is for the memory card.

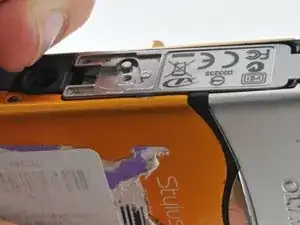

  5. cTQNbhkHKH4fdZ6w

    • Close the latch. You will hear a click when the compartment is fully closed.

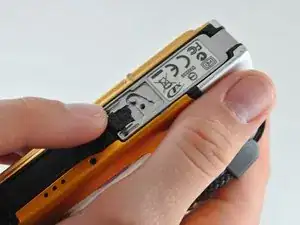

  6. fROtVZ65oJYKqcD1

    • Place the small black piece back in its' place.

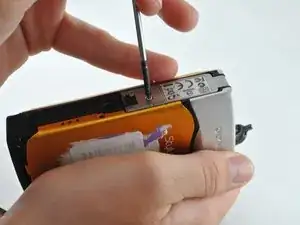

  7. HOqCTEYGfgeKKAVN

    • Place the metal cover back over the closed latch, and screw the screw back in.

Abschluss

To reassemble your device, follow these instructions in reverse order.
