Olympus Camedia D560 LCD Screen Replacement

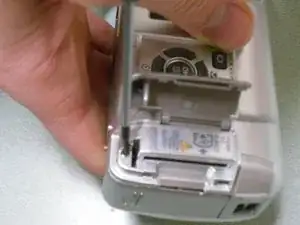

Unscrew all immediately visible screws on the body of the camera.

Locations (# of screws): Bottom of camera (3), left side near video port (2), under cover of USB slot (3), memory card slot (1).

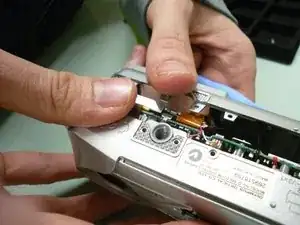

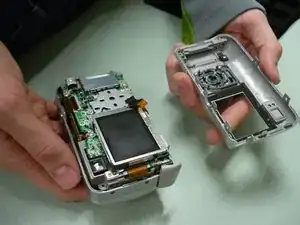

Use the plastic opening tool to separate the back cover from the camera.

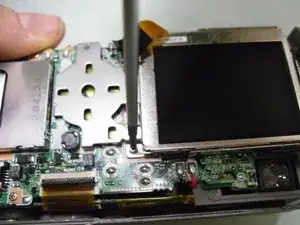

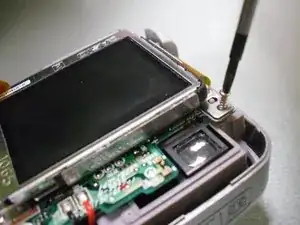

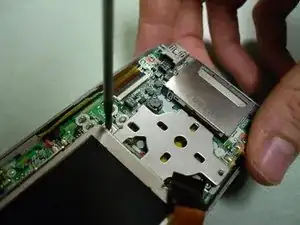

With the back plate off, locate two screws: one diagonal from the top left of the LCD screen and one diagonal from the top right of the LCD screen.

Unscrew both of these screws.

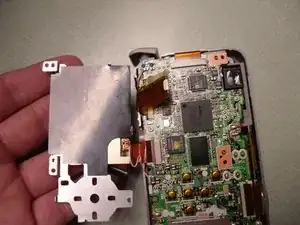

Flip the LCD screen over.

Undo the clip holding the ribbon cable that attaches the LCD screen to the motherboard.

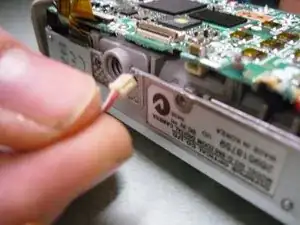

Unclip the plug attached to the red and white wires that connects the LCD screen to the motherboard.

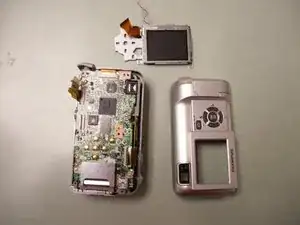

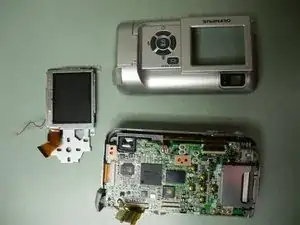

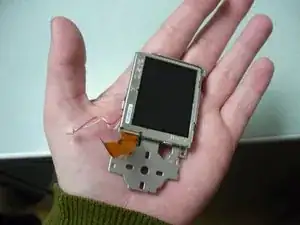

The LCD screen housing should now be free of the camera.
