Step-by-step Instruction Guide

Olympus D590 Camera Microphone and Speaker System Replacement

  1. tLRBDCXKkV3QFXxf
    • Remove five baseplate screws using a Phillips #00 screwdriver.

  2. xviXHOyDMDQNLxqv
    • Press and slide the battery cover retainer clip to the left. Use tweezers to lift the battery cover away.

  3. HbI3KlmFdDtXiqWg
    • Remove the single screw from the battery housing using a Phillips #00 screwdriver.

  4. w6ZLPFeFtDTHba5h
    • Using tweezers, lift the rubber plate to expose the ports.

  5. lWpwRWBLQLbGXt4r
    • Remove two screws from the ports using a Phillips #00 screwdriver.

  6. TrqgK4nV5sZBYJOi
    • Use a spudger to pry the faceplate away from the rest of the camera.

  7. cCr4mQVeNcIX6Qbl
    • To avoid disconnection of the connector line to the motherboard, use caution when pulling faceplate away from camera case.

    • Damage to the connector line will prevent the on/off power switch's operational function.

  8. gXadTuISO4Ip5tCs
    • Using a Phillips #00 screwdriver, remove three screws fastened to the camera backplate edge.

  9. XuRTfqUm1vjZUsPV
    • Using a Phillips #00 screwdriver, remove the two camera flash screws secured to either side of bulb housing component.

  10. TV1ai5PFgvDeLk1o
    • Using an iFixit opening tool, pry the backplate from the camera internal housing component.

  11. jC2x6tq5GgtqOGVT
    • Pull the backplate away from the camera internal housing component.

  12. vkJp4wnCGXmBGbFe
    • Remove one screw Phillips #00 from the right side of the LCD screen camera internal housing component.

  13. UKuJA4aje1XhPmZm
    UKuJA4aje1XhPmZm
    meILGkmSSw3ObHPD
    • To check that all screws are removed from the exterior side panel, gradually slide and lift no more than 3cm away from the camera internal component body.

  14. vRES6FbCED5231cq
    vRES6FbCED5231cq
    tT1eXYyFanX5ieJM
    • View the front of the camera internal housing component.

    • Using tweezers, detach the gray connector and blue wiring tape.

    • Be cautious to gently wiggle and pull blue wiring tape and gray wire connector during detachment.

  15. ndbimivs3lGXKdjF
    ndbimivs3lGXKdjF
    53VdfmYWZAJKePWL
    • View the top of the camera internal housing component.

    • Using tweezers, gently lift the black tape exposing all connector wires.

  16. QIDROuK6cBgDrl4u
    • View the bottom of the camera internal housing component.

    • Caution: Keep yellow taped wire attached to the LCD screen.

    • Use tweezers to gently wiggle, pull, and detach tape from the surface of the camera internal housing component.

  17. evbVRpX5MUptUyV5
    evbVRpX5MUptUyV5
    RKEEmDI5bp5NgGF6
    iRM6XPblTARZ4QXU
    • View the front of the camera internal housing component.

    • Using tweezers, gently lift the speaker, cautiously maneuvering the wire away from the side of the internal housing component toward the front of the camera internal housing component.

  18. U3WOET35yDvLjMPx
    U3WOET35yDvLjMPx
    IGqHqmABLt1knvce
    • Gently lift the LCD screen away from the camera internal housing component hinging the thick yellow wiring tape attached to the camera internal housing component.

    • Use a forefinger and thumb to gently pull the thick yellow wiring tape out of the camera internal housing component.

  19. haovrdM1DHfKegyH

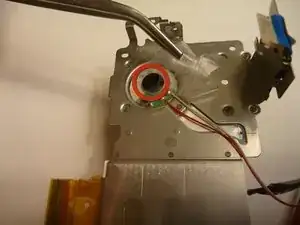

    • Using tweezers, gently lift and remove the clear tape covering the speaker.

  20. PJf3UBTeQmkKX4TS
    PJf3UBTeQmkKX4TS
    O3oKadmLOVxZiIBg

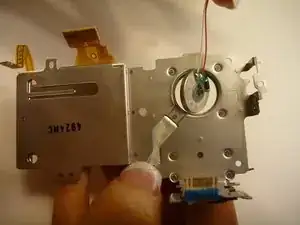

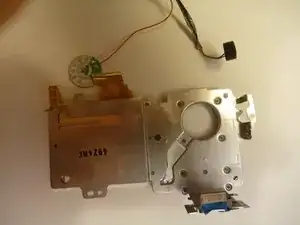

    • Gently lift the speaker from the LCD screen fitting.

Abschluss

To reassemble your device, follow these instructions in reverse order.
