This guide requires you to handle sharp metal objects. Proceed with caution. To avoid misplacing the screws hold them in place with masking tape. Make sure your hands are clean and dry before they come in contact with the internal parts of the camera.
-
-

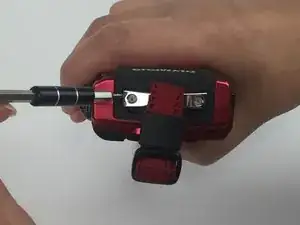

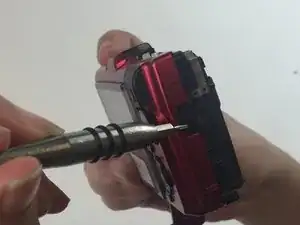

Locate the strap eyelet side of the camera and use the PH000 screwdriver to remove the two 5.3mm screws that hold the strap.
-
-
-

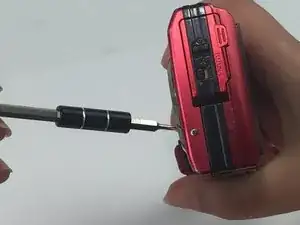

Locate the side of the camera containing the HDMI port. Use the PH000 screwdriver to remove the 5.4mm screw located on the lower left side below the port.
-
-
-
Locate the bottom section of the camera. Using the PH000 screwdriver, remove the two 4mm screws located towards the middle (near the battery compartment).
-
-
-

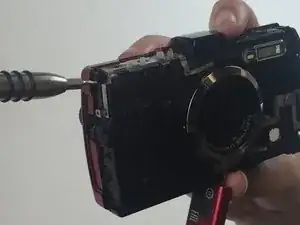

Using the PH000 screwdriver, remove the two 4mm screws located on the left side of the camera, under the strap holder.
-
-
-

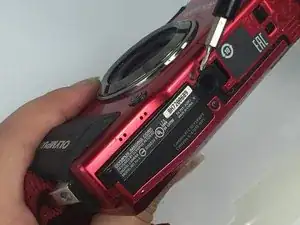

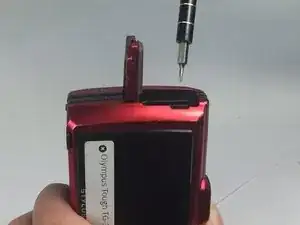

Use a PH000 screwdriver to remove the 3 mm screw located on the bottom of the battery compartment.
-
-
-

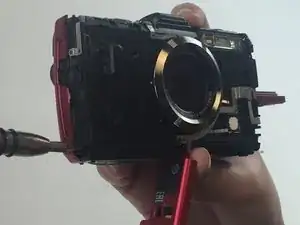

Hold the device as shown in the picture. Using the PH000 screwdriver, remove the 9mm screw located on the upper left side of the camera.
-
-
-

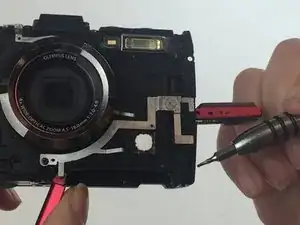

Use the PH000 screwdriver to remove the 7mm screw you'll find toward the lower left side of the camera.
-
-
-

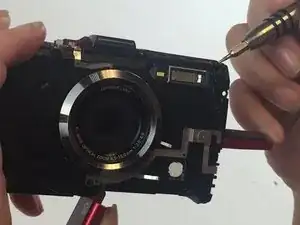

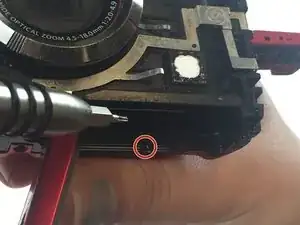

Use a PH000 screwdriver to remove the 6mm screw on the upper right side of the camera, above the flash.
-
-
-
Using the PH000 screwdriver, remove the 1.2 mm located on the lower right side of the device, towards the corner.
-
-
-

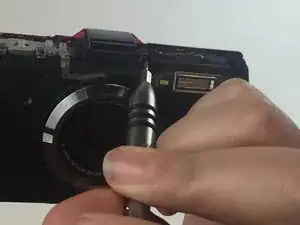

Use the PH0000 screwdriver to remove the 7 mm located on the upper side of the camera, where the shutter and zoom bottoms are. You will find the screw towards the middle of this section.
-

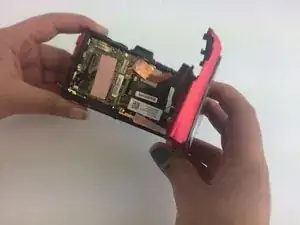

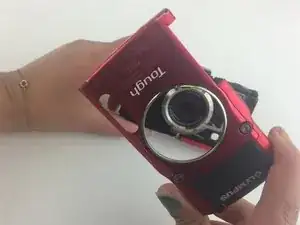

To reassemble your device, follow these instructions in reverse order.
