Olympus FE-210 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

5 - 15 Minuten

Einleitung

Before removing the LCD screen you must first remove the rear camera casing.

  1. kOvDTMFpOTGOStDJ
    kOvDTMFpOTGOStDJ
    Nuqe5bDwjKLmoVHK

    • The battery compartment is located on the bottom side of the camera. Push the button in, and slide the cover to get access to the batteries.

  2. ZxDN3K3hyTgvRvcK
    ZxDN3K3hyTgvRvcK
    wsGTdrCIvwowmIhh

    • The batteries will slide right out.

    • When putting new batteries in, make sure they are pointing the right direction.

  3. QTG24NZNnPMtjEUx
    QTG24NZNnPMtjEUx
    6D5PieSOFZrdWTBq
    shaCqQuDKpQBitWU

    • Remove the 7 screws holding the front case in place, with a #00 screwdriver.

    • Six screws are 3.6 mm.

    • The seventh screw is 3.2 mm.

  4. YF6x1BMOOIBUQGe2
    YF6x1BMOOIBUQGe2
    tRqkWaMDI2HQUXOc
    FWYixyCSqlGcMJnL

    • Pulling the front case off, requires applying enough strength in the right areas.

    • The front case snaps into place in three places:

    • At the top and bottom of the battery side (opposite of side pictured) of the case.

    • Right in the middle of the DC-in side (side pictured) of the case.

    • Top of the camera, to the left of the power button.

    • Once those places are disconnected, the front case will pop right off.

    • The camera in the first two pictures is upside down. This is the best position to place your thumbs to remove the case.

  5. 1tWeFSQXUwroXViL

    • Remove the 3.2 mm screw in the battery compartment using a #00 screwdriver.

    • After removal of the screw the case will be loose, but do not tug it off. There is a cord connecting the rear controls to the motherboard.

  6. DBA1PkBHibHc1OUm
    DBA1PkBHibHc1OUm
    cIsDJRFKfEYBCv4R
    npYESMXiQalacGtK

    • Carefully pull the rear case away from the camera until you have access to the cord connected to the motherboard.

    • Lift the white latch using a fingernail or a spudger.

    • Pull the cord from its connector.

  7. ekflxZhApPdIMDDV
    ekflxZhApPdIMDDV
    GSUaOVS2cXniYATg

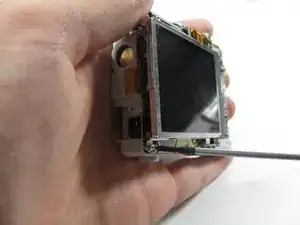

    • Remove the two 2.7 mm screws using a #00 screwdriver.

    • After removing the screws the display will be free. Do not remove it. Like the rear case, there is a cord connecting it to the motherboard that must be disconnected first.

  8. yyF1ZTNHFGAIyLwi
    yyF1ZTNHFGAIyLwi
    jXZ1tZFV6HPTd3UF
    InVkMOJRBbLdpFBU

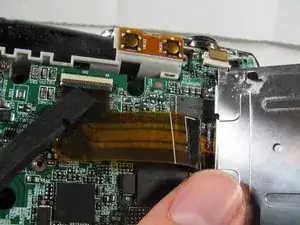

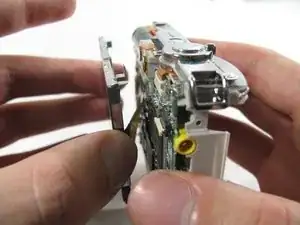

    • Using a spudger, lift the latch on the connector.

    • Remove the ribbon cord from its connector.

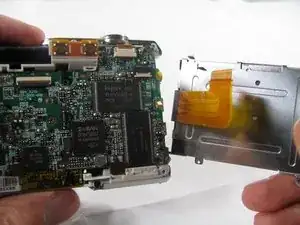

    • Remove the LCD from the rest of the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
