Olympus FE-210 Lens Assembly Replacement

Geschrieben von: Matt
  • Kommentare: 1
Olympus FE-210 Lens Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

14

Zeitaufwand

2 - 5 Minuten

Einleitung

You must remove the batteries, the front casing, the rear casing, and the motherboard before removing the lens assembly.

  1. kOvDTMFpOTGOStDJ
    kOvDTMFpOTGOStDJ
    Nuqe5bDwjKLmoVHK

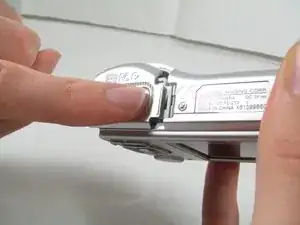

    • The battery compartment is located on the bottom side of the camera. Push the button in, and slide the cover to get access to the batteries.

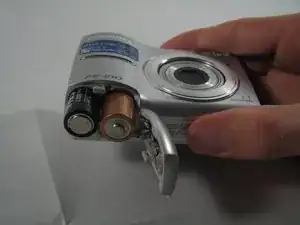

  2. ZxDN3K3hyTgvRvcK
    ZxDN3K3hyTgvRvcK
    wsGTdrCIvwowmIhh

    • The batteries will slide right out.

    • When putting new batteries in, make sure they are pointing the right direction.

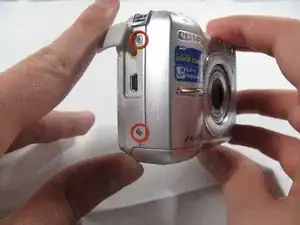

  3. QTG24NZNnPMtjEUx
    QTG24NZNnPMtjEUx
    6D5PieSOFZrdWTBq
    shaCqQuDKpQBitWU

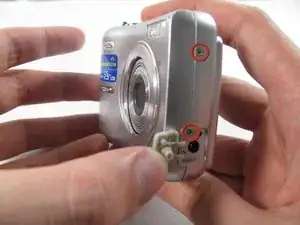

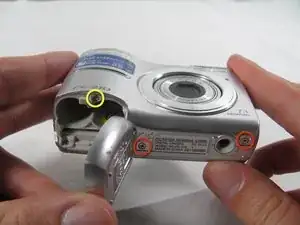

    • Remove the 7 screws holding the front case in place, with a #00 screwdriver.

    • Six screws are 3.6 mm.

    • The seventh screw is 3.2 mm.

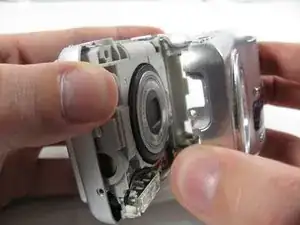

  4. YF6x1BMOOIBUQGe2
    YF6x1BMOOIBUQGe2
    tRqkWaMDI2HQUXOc
    FWYixyCSqlGcMJnL

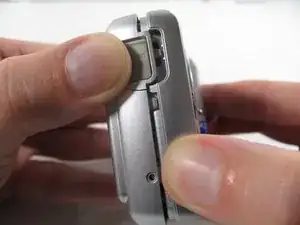

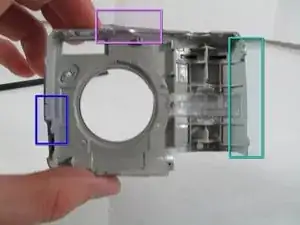

    • Pulling the front case off, requires applying enough strength in the right areas.

    • The front case snaps into place in three places:

    • At the top and bottom of the battery side (opposite of side pictured) of the case.

    • Right in the middle of the DC-in side (side pictured) of the case.

    • Top of the camera, to the left of the power button.

    • Once those places are disconnected, the front case will pop right off.

    • The camera in the first two pictures is upside down. This is the best position to place your thumbs to remove the case.

  5. 1tWeFSQXUwroXViL

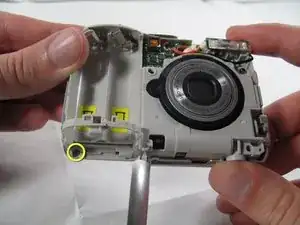

    • Remove the 3.2 mm screw in the battery compartment using a #00 screwdriver.

    • After removal of the screw the case will be loose, but do not tug it off. There is a cord connecting the rear controls to the motherboard.

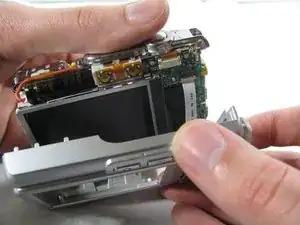

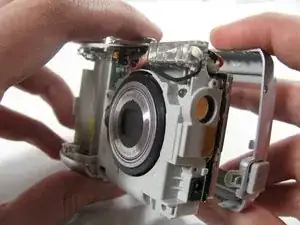

  6. DBA1PkBHibHc1OUm
    DBA1PkBHibHc1OUm
    cIsDJRFKfEYBCv4R
    npYESMXiQalacGtK

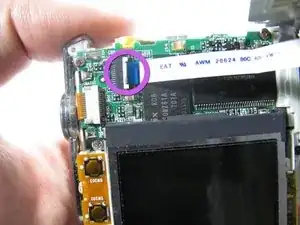

    • Carefully pull the rear case away from the camera until you have access to the cord connected to the motherboard.

    • Lift the white latch using a fingernail or a spudger.

    • Pull the cord from its connector.

  7. OGmnpVvvsWMCEHqW
    OGmnpVvvsWMCEHqW
    jGdYJFC5HaBKTIRe

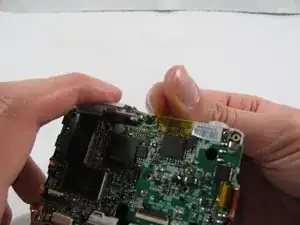

    • Remove the 2 pieces of translucent yellow tape.

    • Removing these pieces of tape will void the camera warranty. They serve no functional purpose and do not need to be replaced during reassembly.

  8. KdkNHdK3MpNViM4e
    KdkNHdK3MpNViM4e
    wTFniYOxwnEmSUwp

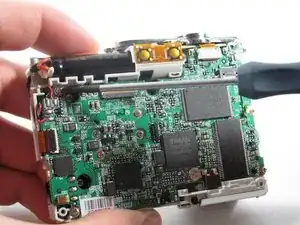

    • Remove the seven 2.7 mm using a #00 screwdriver.

  9. fDuwDg5YaGDDueDJ

    • Remove the ribbon cord located near the top right corner of the motherboard. Do this by carefully pulling the cord out of the socket using a pair of tweezers.

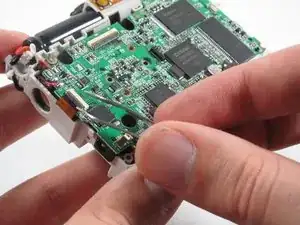

  10. OqPSLe1xIGRpGZn1

    • Disconnect the ribbon cord located on the left side of the motherboard.

    • Use tweezers or a spudger to lift the latch on the connector.

    • Carefully remove the cord from the connector.

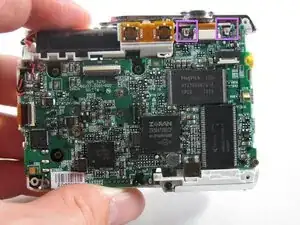

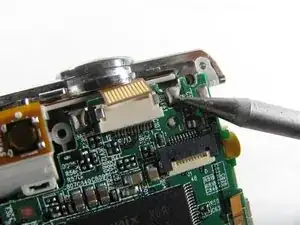

  11. c1lCECRFnNpSSZtD
    c1lCECRFnNpSSZtD
    dAeWDVFTUEK156pS

    • De-solder the 2 connection points.

    • Be careful to not damage any part of the circuit board with the soldering iron.

  12. a1GBJSPsQXhicYA4

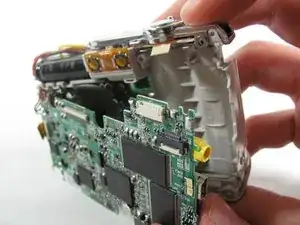

    • Remove the motherboard from the camera casing.

  13. iBUB6ZGX2haJYKQc

    • Remove the three 3.6 mm screws using a #00 screwdriver.

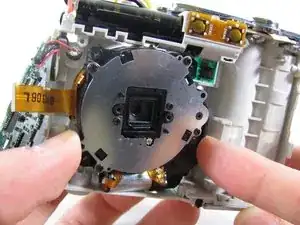

  14. fT1wNcoAeLW2jSOq
    fT1wNcoAeLW2jSOq
    JosffdNOl5Fapg5M

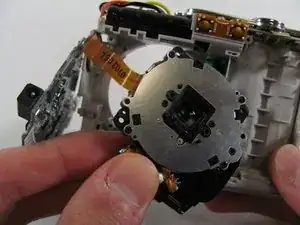

    • Slide the lens to the left and pull up. The lens should easily come loose and slide right out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
