Einleitung
In this guide we will explain how to replace a screen in the Olympus OM-D E-M10 Mark II Camera. For this procedure you will the following set of items: a 00 Philips head screwdriver and your own replacement screen. This procedure is not particularly hazardous so no protective gear should be required. This process can be a little tedious so make sure to set aside around 30 min to an hour and a half to replace the screen. It would have a medium level of difficulty due to the overall size of the parts and delicacy. Because this is a digital camera, having a functioning screen is necessary for having a functional camera.
Werkzeuge
-
-

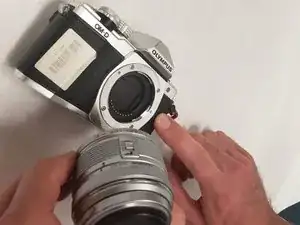

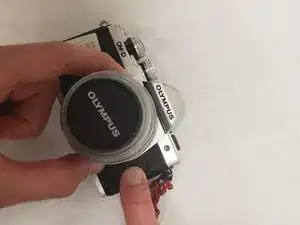

Lay the camera on its back as shown. Using the button located to the right of the lens, hold it down while rotating the lens to release it from the camera.
-
-
-

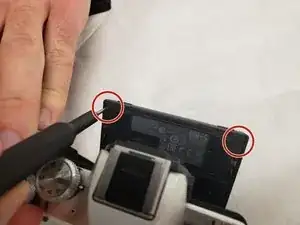

Extend out the screen so you can reach the screws. Remove the a total of four screws using a Phillips #00 at the top and the back of the screen.
-
This step has two types of screws. (2x) 3.5 mm on the top, (2x) 1.7 mm on the back.
-
-
-

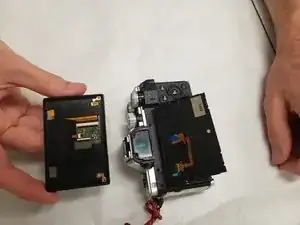

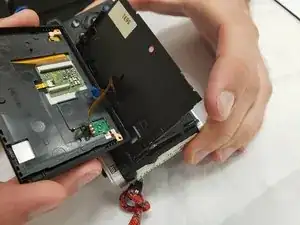

Pull the screen away from the base of the camera. Then disconnect the cable connectors from the circuit board. Be sure to remove the smaller circuit board with care.
-
To reassemble your device, follow these instructions in reverse order.
4 Kommentare
Hi, do you know if the LCD screen from the Mark II is the exact same as the Mark III? I see replacements for the Mark II being sold, but they don’t say whether they’re compatible.
Hey Solomon I am experiencing the same issue. Did you find out if they are exactly the same?? My LCD screen no longer functions and all I come across online is the Mark II LCD's.
Hi, do you know where I can buy the screen?
Thanks
Lorenzo
If you order only panel like me, theres few wery scary parts more. You have to remove couple pcb's, trying get connectors back in and you definetly need elastic glue for glueing screen back.
