Olympus SZ-12 Back Case Replacement

Geschrieben von: Samuel Hays
  • Kommentare: 0
Olympus SZ-12 Back Case Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

You will need a clean, well-lit area, an iFixit repair kit including the specialized screw driver, along with the Phillips #000 bit. We also recommend you have an organization tray in order to keep track of all the screws you will be taking out.

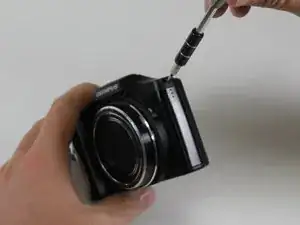

  1. JyaKJWUqcUjWhovG
    JyaKJWUqcUjWhovG

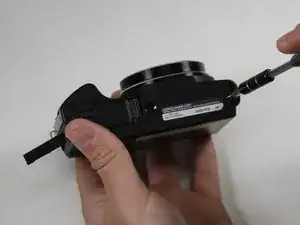

    V6TFyrM54IMCxePe

    • Remove nine 4.45mm Phillips #000 screws from the outside of the case.

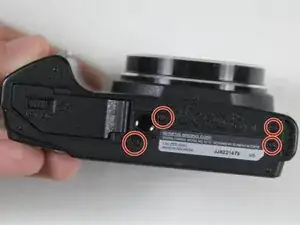

  2. wbRtUHYROu2VAHwu

    • There are four screws to take out on the bottom of the camera.

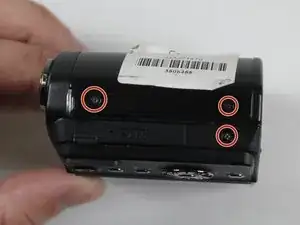

  3. YDjTuvTPg6EhkLrF

    • There are three screws to take out on this side.

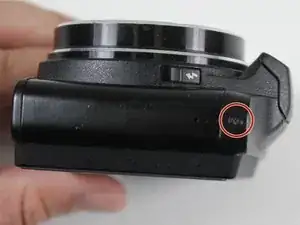

  4. tXQH4UvKvekpVsYk

    • There is one screw to take out on this side.

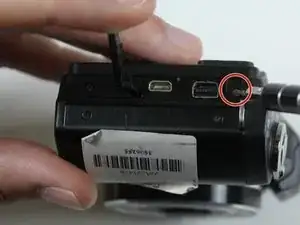

  5. uKdlrAXhedCSFOYK

    • There is one hidden screw inside the HDMI port.

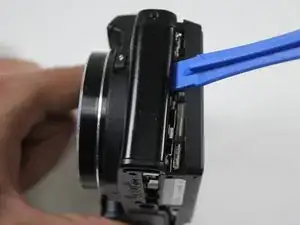

  6. UKcbknZwnKAQQRxD

    • Using the blue plastic opening tool, wedge open and remove the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
