Olympus SZ-12 Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

30 Minuten

Einleitung

You will need a clean, well-lit area, an iFixit repair kit including the specialized screw driver, along with the Phillips #000 bit. We also recommend you have an organization tray in order to keep track of all the screws you will be taking out.

  1. JyaKJWUqcUjWhovG
    JyaKJWUqcUjWhovG
    V6TFyrM54IMCxePe

    • Remove nine 4.45mm Phillips #000 screws from the outside of the case.

  2. wbRtUHYROu2VAHwu

    • There are four screws to take out on the bottom of the camera.

  3. YDjTuvTPg6EhkLrF

    • There are three screws to take out on this side.

  4. tXQH4UvKvekpVsYk

    • There is one screw to take out on this side.

  5. uKdlrAXhedCSFOYK

    • There is one hidden screw inside the HDMI port.

  6. UKcbknZwnKAQQRxD

    • Using the blue plastic opening tool, wedge open and remove the case.

  7. XnIZC13OPSkdpTM1

    • Once you have the back case off, remove the LCD Screen.

  8. YvCqwvnVP22CZN6G

    • Using a plastic opening tool, gently lift the retaining flap on the display cable ZIF connector.

    • Pull the display cable from its socket on the motherboard.

  9. mhFCmhY1YKJGXZc4

    • Remove the LCD screen from the device.

    • Be careful not to rip the display's ribbon cable as you pull the screen away from the device.

  10. EKQm1SRXdwDTBVTW
    EKQm1SRXdwDTBVTW
    kK2jnUpK6CQ6PPTW

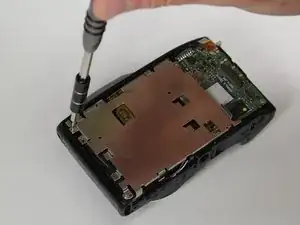

    • Remove the four 3.8mm Phillips #000 screws from the LCD frame.

  11. eSMidjJuhQYTsFjE
    eSMidjJuhQYTsFjE
    mGxYqaxxHMSieBuu
    ejJrRoiJDxcHN5Ej

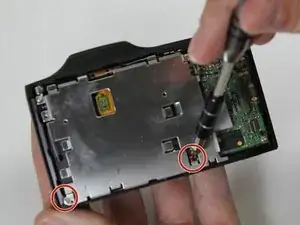

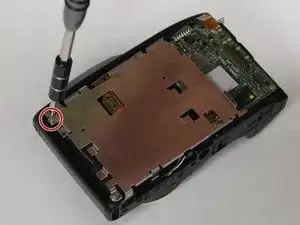

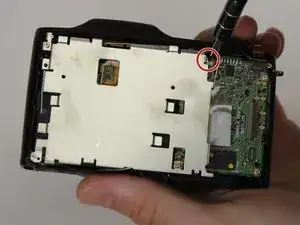

    • Remove the top left screw, top right screw, bottom left screw, and bottom right screw from LCD frame.

  12. egXbCx1kq3ZYLDFQ
    egXbCx1kq3ZYLDFQ
    nU66YoPUSEI2iDlg
    ydZ2gIQagXngKOYf

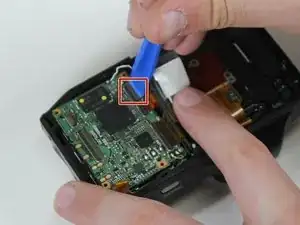

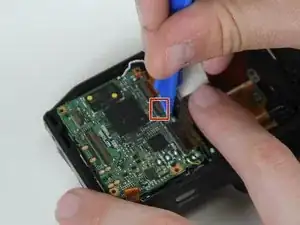

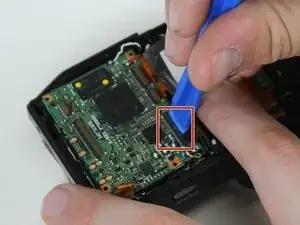

    • Lift the retaining flaps on the three remaining ZIF connectors connected to the motherboard.

  13. djrNlqIXhYaLYJ1T

    • Remove the five 4.3mm Phillips #000 screws from the lens frame to access the lens.

    • Remove the lens frame.

  14. HES3whd2NGgeMjLJ
    HES3whd2NGgeMjLJ
    UiIqPcDUTRAlwJNV
    vVO55nedJNe66UVj

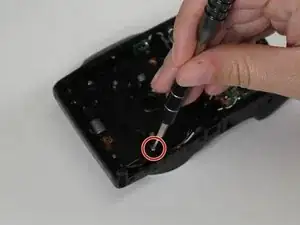

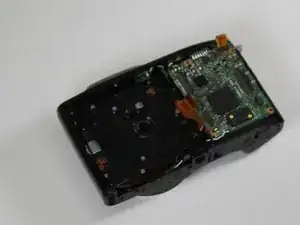

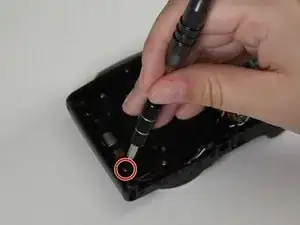

    • Remove two 4.3mm Phillips #000 screws from black plastic piece surrounding the lens.

    • Remove the lens.

Abschluss

To reassemble your device, follow these instructions in reverse order.
