Olympus Stylus 410 Shutter Button Replacement

Geschrieben von: Rory Aronson
  • Kommentare: 0
Olympus Stylus 410 Shutter Button Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

15 Minuten

Einleitung

If the shutter button on your camera has stopped functioning, use this guide to remove the old one and install a new button.

  1. 3PVxO6ikTlSsGQAk
    3PVxO6ikTlSsGQAk
    ryPomQOGGfNH6VEP
    jgNbs6yyl6HUEdWT

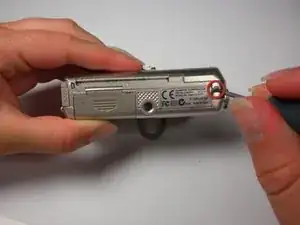

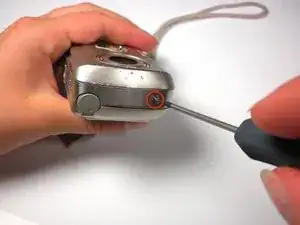

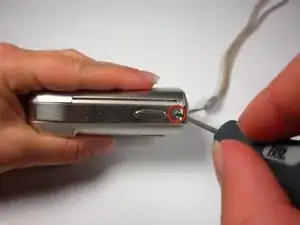

    • Locate the 3 screws on the outer metal band and remove them with a #00 Phillips screwdriver.

  2. jCWPNsILBIEAndmv
    jCWPNsILBIEAndmv
    fFRTitJeKjj41Jy3

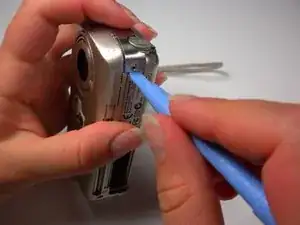

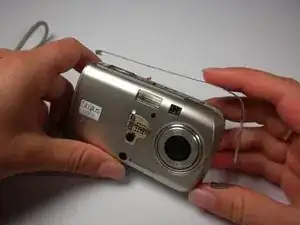

    • Use the spudger to peel off the outer metal band, starting from the bottom of the camera.

    • The metal band it attached to the camera with glue in addition to screws. Be careful not to bend the band when removing it from the camera.

  3. NrJiBKWcXi65sC6R
    NrJiBKWcXi65sC6R
    qJRnwUCnRLiZHFrq

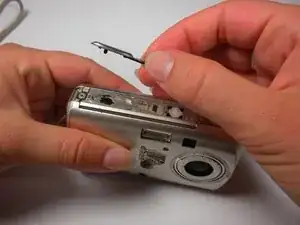

    • The shutter button can now be removed. It is not connected to the camera and can be lifted off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
