Olympus Stylus 410 Speaker Replacement

Locate the 3 screws on the outer metal band and remove them with a #00 Phillips screwdriver.

Use the spudger to peel off the outer metal band, starting from the bottom of the camera.

The shutter button can now be removed. It is not connected to the camera and can be lifted off.

Remove the memory card.

Locate and remove the 2 screws using a #00 Phillips screwdriver.

Use a spudger around the edge of the case to loosen it.

Carefully wiggle the back case off. This may require a fair amount of force.

Locate the 3 internal screws holding on the front of the case. Remove them with a #00 Phillips screwdriver.

While grasping the interior and the front case, gently pull until they start to come apart. Some light wiggling may be required.

Be careful not to completely pull the front case off because it will still be connected with wires.

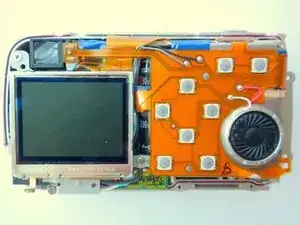

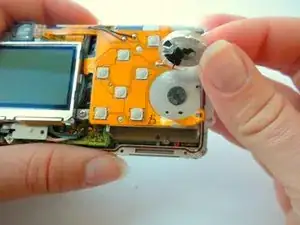

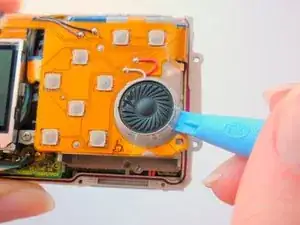

Use a spudger to remove the speaker. It is attached by a double sided adhesive so it should just peel off.

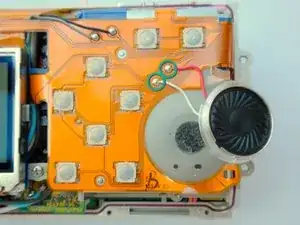

Un-solder the wires to remove the speaker.
