Olympus Stylus Tough TG-2 iHS Display Assembly Replacement

To detach the monitor screen, remove the following 7 screws:

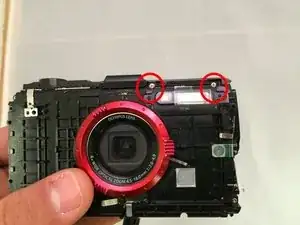

Locate the flash and remove the 2 Phillips #00 9.23mm & 14.87mm screws.

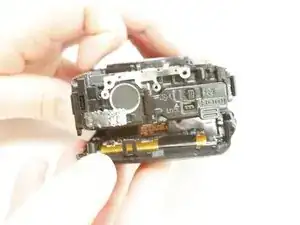

Locate the battery door and remove the single Phillips #00 3.37mm screw.

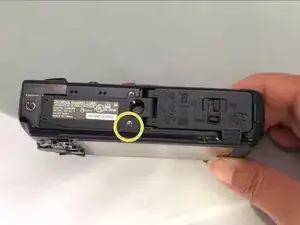

On the bottom of the camera, remove the single Phillips 3.58mm screw near the tripod socket.

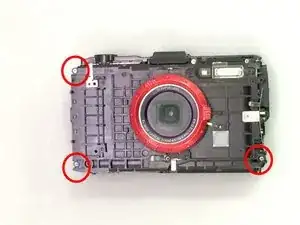

On the face plate, locate and remove the 2 eyelet strap side Phillips #00 9.2mm corner screws and the lower battery corner Phillips #00 14.87mm screw.

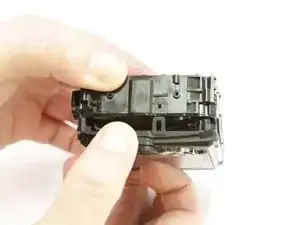

Use your fingers to unclasp the casing clips on either side of the camera and pull down the monitor casing.

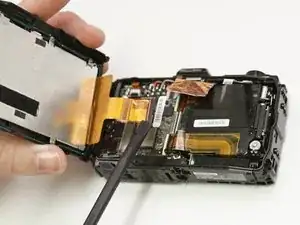

Using the spudger to gently pry the screen away from the body of the camera.

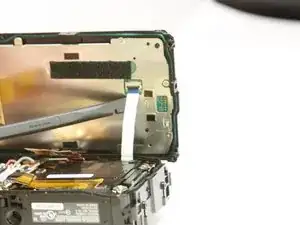

Locate the clasp for the white ribbon.

Use the spudger to lift the clasp releasing the ribbon

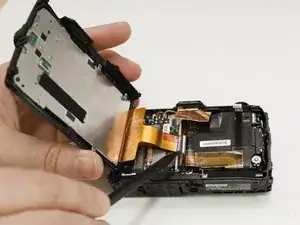

Locate the clasp for the orange ribbon in between the motherboard and lens box.

Use the spudger to lift the clasp releasing the ribbon.

Next pry up on the white connector using the spudger to free the screen from the device.

The housing and monitor will be separated.
