Olympus Stylus Tough-8010 Lens Replacement

Geschrieben von: Luke Visser
  • Kommentare: 2
Olympus Stylus Tough-8010 Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 - 30 Minuten

Einleitung

Use this guide to remove the components of the Olympus Stylus Tough-8010 camera's lens component.

  1. EEFny1BuedK1Pbpv
    EEFny1BuedK1Pbpv
    hCa4T2PY4bgnwiMm
    hgSUCqZFsGSYXRnW

    • Remove the front three screws (3.2mm) using a type T-6 head screwdriver.

    • Take off smaller front cover.

    • Carefully remove larger front cover.

  2. wNgNBmIdBW2YXTQN
    wNgNBmIdBW2YXTQN
    NalUWvk1XUXZR5MJ
    uv2qMKP3omcuHjFd

    • Remove two screws (4.1mm) on the top of the camera using a #000 Phillips head screwdriver.

    • Using a #000 Phillips head screwdriver remove two screws (7.9mm) near the control panel and set aside the metal connector.

    • Although the third photo shows the side panel casing being removed, it is normally secured by a screw under the front framework. You'll need to follow the next two steps to remove the framework and access the screw before you can remove the side casing as shown here.

    NOTE: you cannot remove the side piece until you complete steps 3 and 4 because there's a screw holding the corner of it which you can't see until you remove the front framework. You can just let the side piece hang there while you do that.

    winntom -

  3. LrvCMCN1opiDSxCD
    LrvCMCN1opiDSxCD
    P6JnMgKneo4WAK36
    BRWgTR2DGidlYIlY

    • Using a #000 Philips head screwdriver remove the two screws (4.1mm) on the right side of the camera.

    • Remove two screws (4.1mm) on the bottom of the camera using a #000 head Phillips screwdriver.

    • Remove the single screw (3.2mm) on the front of the camera using a #000 Phillips head.

  4. yqBRdax3DW3RwpQj
    yqBRdax3DW3RwpQj
    MIKXJVZnNRReNeaQ

    • Carefully remove the font panel piece from the rest of the camera.

    • Carefully remove the top/side plastic piece.

    • If the the camera and flash buttons fall out of their slots set them aside.

    • If you haven't already done so, remove the side casing as mentioned in Step 3. It is secured by a single screw near the bottom corner.

  5. ryCoyEVDSkqJEWI2
    ryCoyEVDSkqJEWI2
    pZTfIDQJdpQgF2hY
    dZUXNR1wtV5ikv6Z

    • Remove four screws (9.4mm) on the front of the camera using a Phillips #000

    • Use the plastic opening tool to release the holding clip.

    • Using tweezers separate the plastic strips from their connectors located on the main circuit board by lifting the small, black flaps on the connectors and pulling on the ribbons.

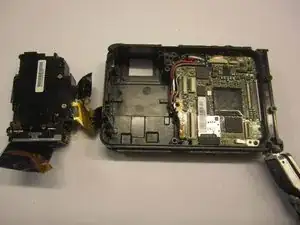

  6. OHqLhpt6amKX34Nh
    OHqLhpt6amKX34Nh
    Z62iWSBBMcaIwqPr

    • Remove any tape on the flash component on the left.

    • Using tweezers, disconnect the plastic strip from its connector on the motherboard by lifting the plastic black flap on the connector and pulling the ribbon.

    • Using a #000 Philips head screwdriver remove four screws (4.1mm) on the metal plate.

    • Gently lift the flash components out of the camera casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
