Einleitung

Is your LCD screen unresponsive or not working properly? This guide will explain how to replace the LCD screen.

  1. ObwKPcyPifUPCTyw
    • Orient camera to look directly at battery compartment side as shown.

  2. rKSZMCNNWMoPmRVp
    rKSZMCNNWMoPmRVp
    aI2UKIlab13huwNC
    gpNdhdCsH5CcNtgl
    • Locate the two latches on the battery compartment.

    • First, move the "lock" switch left to reveal red indicator.

    • Next, move the "cover latch" switch downward to reveal red indicator.

    • You have to move the switches in that order for the compartment to unlatch.

  3. SU1q3pGHbNYxJFqM
    SU1q3pGHbNYxJFqM
    FOWRFAyKfuHYuv33
    • Allow the battery compartment latch to completely open.

    • Insert battery with the writing face up.

    • The bigger slot is for the battery. The smaller slot is for the memory card.

    • Battery not shown.

  4. MZtFuG1SjGTcArCE
    • Orient the camera so you are looking at the bottom.

    • Remove the three 3.85mm Phillips #00 screws from the bottom of the camera.

  5. bxQdGTpKGP62SapO
    • Orient the camera so you are looking at the side plate.

    • Remove the two 3.15mm Phillips #00 screws from the side plate of the camera.

  6. 5SGeIMptUTJfSMlf
    5SGeIMptUTJfSMlf
    vaLXl6tfuRjusNWf
    • Orient the camera so you are looking at the front plate.

    • Remove the two 3.8mm with the Phillips H1.5 from the front plate.

    • Remove the "Olympus" plate.

    Step 6 - Do not appear to be phillips screws? Maybe pop rivets?

    vini smit -

  7. UsCDcoq3uK3Ombnl
    • Remove face plate.

  8. bGi4AASoRdPGLlLw
    bGi4AASoRdPGLlLw
    NWpAOWLJrCs2ASG2
    EGpWUCBZNaEuyKh4
    • Locate three small black screws inside of the battery compartment.

    • Remove the 3.85mm Phillips #00 screw on the far left side.

    • Remove the two 5mm Phillips #00 screws on the right side

  9. twFIekJwpmB65UKb
    twFIekJwpmB65UKb
    1IP123rBn2vtPFGv
    ByKYcNoMdanodPs5
    • Orient the camera to be look at the top.

    • Remove the 5.4mm Phillips #00 screw on the top left side.

    • Remove the 7.4mm Phillips #00 screw next to the "ON/OFF" label.

    • Pry off top button plate with black nylon spudger.

  10. eCTFaSjhsJbZoXmN
    eCTFaSjhsJbZoXmN
    YHA4rXPHRGUWE632
    • Rotate to bottom of camera and locate bottom latch.

    • Wedge black nylon spudger in between bottom latch and camera base to release LCD Screen from camera.

    • Push firmly apart.

    • Some buttons might fall out.

  11. b4A2veqkSJoTFrSo
    b4A2veqkSJoTFrSo
    FZLw4IEyVLlFqvMO
    lucEIN3dDQoUudkq
    • Orient the camera to the LCD screen side that is now wedged open.

    • Locate the white ribbon cable and pull out from motherboard.

    • Locate the brown ribbon cable and pull out from motherboard.

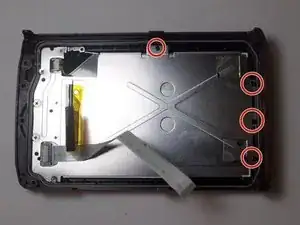

  12. YsVkoIimiEH53YUs
    • Now that ribbons are detached, orient plate as shown.

    • Remove the four black 2mm Phillips #00 screws.

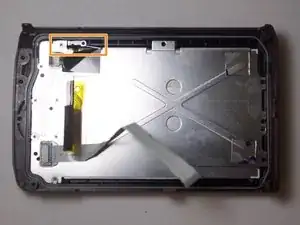

  13. PNl6Fv6LCmEwyKpP
    PNl6Fv6LCmEwyKpP
    mUkstI5wOIFaZyCf
    • Remove the six silver 3mm Phillips #00 screws.

    • Remove the last top 3.25mm Phillips #00 screw.

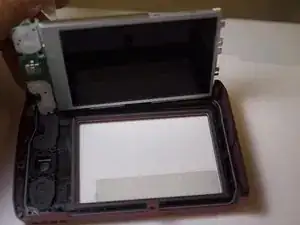

  14. V2FoyJw1kxXhHwyG
    • Using the black nylon spudger, pry out the metal plate.

    • This metal plate is the LCD component needing to be replaced

Abschluss

To reassemble your device, follow these instructions in reverse order.
