Olympus Tough TG-1 Lens Box Replacement

The top of the camera does not contain screws. You do not need to remove anything from the top of the camera.

Remove the two 5 mm screws on the side of the camera with the plug.

Open the compartment door and remove both 6 cm screws inside of the compartment door. This will allow you to remove the tan piece held by the screws.

Turn the camera so that you are looking at the bottom of the camera.

Remove the two 4 mm screws from the bottom of the camera.

Use the plastic opening tool to remove both components of the front panel. This includes the black part on the outside of the front panel and the main silver panel.

Using the plastic opening tools, carefully open the case.

Using the screwdriver, remove the ten 3mm anchor screws.

Using the plastic opening tool, open the protective cover so that the screen is exposed.

Carefully unclip the screen from its circuit ribbon.

Locate the lens box attached to the motherboard.

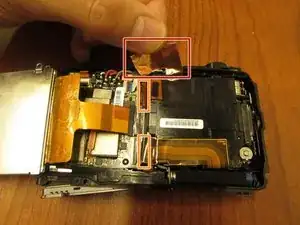

Lift the copper foiled ribbon away from the lens box.

Detach the box by unclipping the ribbons connected to the motherboard.

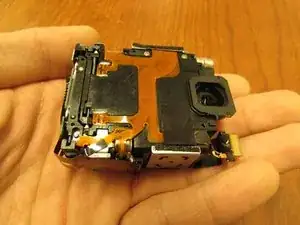

Lift the box out of the camera.
