Einleitung

The Port Cover helps preventing water splashing inside the charging and AUX port. It is important to keep the cover in good shape to prevent damaging the internal components.

  1. hiZccfgrEhqdwQsy
    • Flip the device over so the front of the speaker is facing down. Make sure to place the speaker on a flat surface

  2. IUAlASlbahCRoOYu
    IUAlASlbahCRoOYu
    AN3RvTflmTNfckVY
    • Use a T6 Torx screwdriver to remove the four 9mm screws from the back of the device.

  3. YglOmUGVXVbUO3Cr
    YglOmUGVXVbUO3Cr
    KgqAAAOPswRqQpvb
    • Use a magnet to remove the screws after unscrewing them and place them aside.

  4. eBx2BVm1GcGCvOb6
    • Carefully remove the back cover without breaking the battery wire.

  5. HOMC1Bpqd3dEtk6X
    HOMC1Bpqd3dEtk6X
    RRMjmikwIFaKJPwa
    • Remove the end of the battery connection from the motherboard by holding the end of the wire and carefully pulling it out of the socket using tweezers.

    • The battery is still attached to the back cover.

  6. RfE26VxHsRqsaItF
    RfE26VxHsRqsaItF
    my3LqNdyEsOOjmrt
    • Remove the mic wire by carefully pulling the plug out of the socket.

  7. RbtqCVsjQDuF3kIb
    • Remove the speaker wire by carefully pulling the plug out of the socket on the motherboard.

  8. XVD23bBFCECKZo2B
    XVD23bBFCECKZo2B
    pIHdXtKt5AJiEToO
    • Use Phillips PH00 screwdriver to remove the three screws holding the motherboard in place.

  9. xsQpuQcIFhxEWIus
    xsQpuQcIFhxEWIus
    QbVDE4tKFanEFYNh
    • Remove the screws using the screwdriver.

    • Since the screws that hold the motherboard in place are smaller, the screwdriver is able to pick them up.

  10. YBV4Rg6q25Dk6Z3U
    YBV4Rg6q25Dk6Z3U
    XKtis5XdvetVSY4s
    • Carefully remove the motherboard with your hand by lifting it from the device.

  11. PjEEQSXvEnrygNZI
    PjEEQSXvEnrygNZI
    WJhREOjbcEOmoUAX

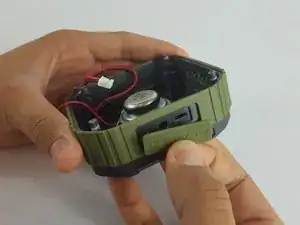

    • Separate the port cover from the device using your hands.

  12. HoW4URBFBRvxVwou

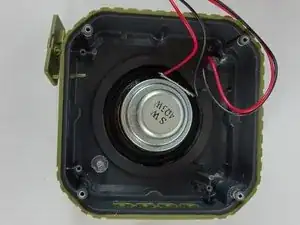

    • Orient the device so the port cover is on your left.

  13. 6i6hJ1xUrWYeE5BO
    6i6hJ1xUrWYeE5BO
    jXpNmMhN6WBxVpWq

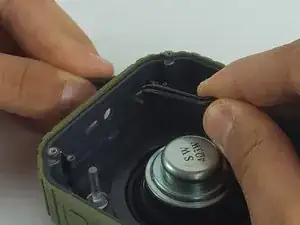

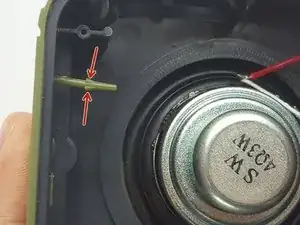

    • Using Tweezers, pinch the larger part of the stem

  14. bMn5OGmKXcx1tTDV
    • Use your left hand to pull while at the same time use the tweezers to compress the stem, carefully remove the port cover from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
