Onda V701 Battery Replacement

Geschrieben von: Bradley Huber
  • Kommentare: 0
Onda V701 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

This guide will show you how to replace a battery that no longer works. This is a common problem with any electronic device and is an easy fix. Just remember to turn the power off before you begin, and to be gentle with the battery. A damaged battery could catch on fire or explode.

  1. CtiBkB2PXQ26YLnK
    CtiBkB2PXQ26YLnK
    YnGTGfcc4O4AoEQ3
    HpmFAsSLZmdQZGNX

    • Ensure device is powered off before disassembly.

    • Remove the 4 rubber screw plugs using a spudger.

  2. nQJbIHvQJ2IHG4KP
    nQJbIHvQJ2IHG4KP
    RQmSaRYapisXr3dy
    CfVHlQSeJeXHXmAA

    • Remove the four 4.8mm mounting screws using a PH00 screwdriver.

  3. ZPbI3BjUdjEgF5jp
    ZPbI3BjUdjEgF5jp
    oseNSlXtMhM1aKbW

    • Starting at one corner, gently pry the back panel assembly from the screen assembly using two plastic opening tools.

    • Slide the opening tools around the perimeter of the device to separate the back panel assembly from the screen assembly.

  4. AijcGKmKo3OQNiiO
    AijcGKmKo3OQNiiO
    CtKRFsUNeyksjxiJ

    • Gently lift the screen assembly away from the back cover assembly.

    • Be careful when separating the two pieces as the screen assembly is still connected to the mother board by two ribbon cables.

  5. N5v2AFargOo35GfL
    N5v2AFargOo35GfL
    tJhleKiubSVpRFhK
    mmH6TGZcvhQ6NtJh

    • Disconnect the two ribbon connectors by flipping the gray tabs up with a fingernail or a spudger.

    • Remove the ribbon cables.

  6. hIRy6uGKtTDtbdsL

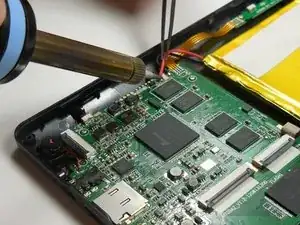

    • Desolder the red(+) and black(-) wires connecting the battery to the motherboard using a soldering iron and tweezers to hold the wire.

    • Soldering requires a lot of heat. Do not touch the metal part of the soldering iron. Wear gloves if necessary to protect your hands. The fumes from soldering could also be toxic. Work in a well ventilated area and/or use a respirator.

  7. 43QqKqSpxdmJDoWh
    43QqKqSpxdmJDoWh
    VTMVKWTDpgIZgcRb
    drygaR4ayJMJBMEt

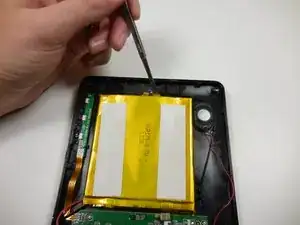

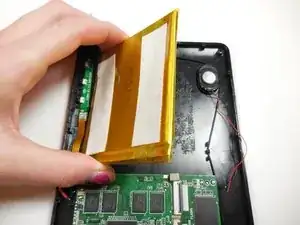

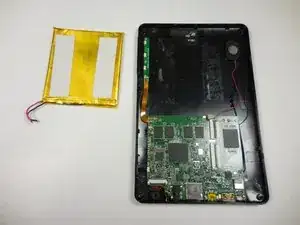

    • Carefully pry the battery away from the back panel using the nylon or metal spudger.

    • Gently remove the battery from the back panel.

    • Ensure not to excessively bend or puncture the battery. Doing so could cause the battery to catch on fire or explode.

Abschluss

To reassemble your device, follow these instructions in reverse order.
