Onda VI10 Battery Replacement

Geschrieben von: Clint Richards
  • Kommentare: 1
Onda VI10 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

This guide is to show how to replace the battery in a Onda VI10.

  1. 1PrZHUKRX6Sta5bl

    • Use a number 0 screw driver to remove the four screws.

  2. TTnrAAdpHJHdswI3

    • Power Button on the side should be pointing outward.

    • Note: This is so the ribbon cables are not damaged.

  3. FwCsUmybbjeL3ALp

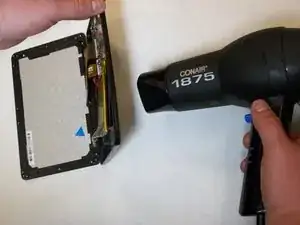

    • Heat up the back of the device with a hair dryer to loosen the glue.

  4. HMGDksJSJ4EMkZ5Y

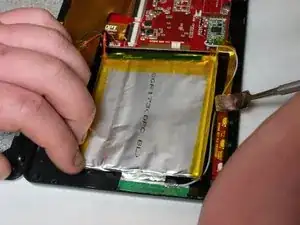

    • Pry up battery from plastic using a nylon spudger or plastic opening tool.

  5. SB3DyHBQghDRV1aN

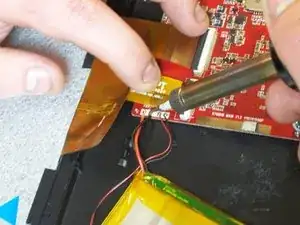

    • Desolder the two battery cables from the mother board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
