Onda VI10 Speaker Replacement

Geschrieben von: Carlos Diaz
  • Kommentare: 0
Onda VI10 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide will teach you how to remove the speakers for the Onda VI10.

  1. VNvTt2j2DsKopqqX

    • Use a number 0 screw driver to remove the four screws.

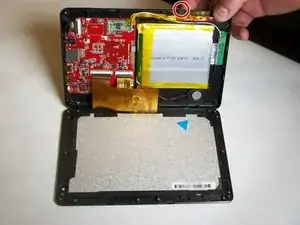

  2. RIbgIPnZOnWnMGPH

    • Power Button on the side should be pointing outward.

    • Note: This is so the ribbon cables inside are not damaged.

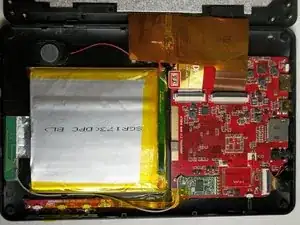

  3. 4QuZEDqmbkJBXooM

    • Locate the black and red speaker wires going back to the mother board.

    • Note: Speaker wires may run underneath the battery wires.

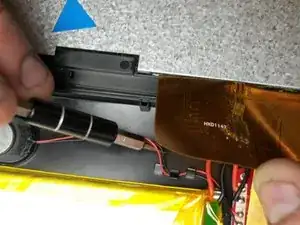

  4. 5BVmSZ5bjC2IsWKw

    • Carefully remove the speaker cables from the retaining tabs using a thin metal spudger.

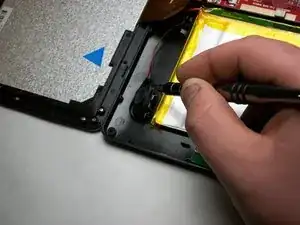

  5. lruKPAFVGN6nlMEK

    • Pry the speaker out of its molding using a thin metal spudger

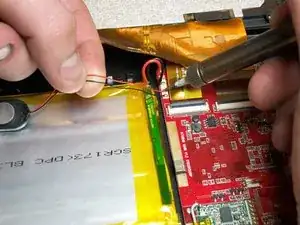

  6. lMxJhrahYpEfkiCh

    • Desolder the two speaker wires from the motherboard using a soldering iron.

    • Caution: Soldering Iron is extremely hot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
