Einleitung

This guide will detail how to replace the display assembly in the One Education Infinity:One laptop. After completion of this guide, the digitizer and screen will be separated to allow for replacement of either component.

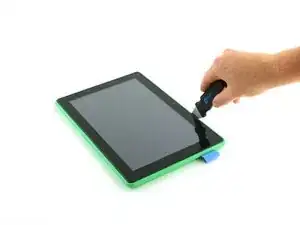

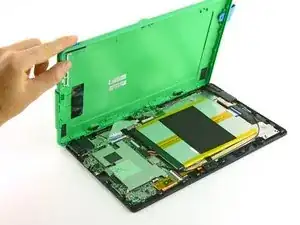

  1. WZ1HiIcN2lF2plYU
    WZ1HiIcN2lF2plYU
    uLRvveLxtCNJUCRo
    imPo4JeJlNwFwru6

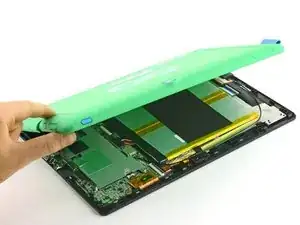

    • Insert a Jimmy or other prying tool into the seam between the screen and back case.

    • Trace around the edges until all clips are released.

    • Lift the back case away from the tablet.

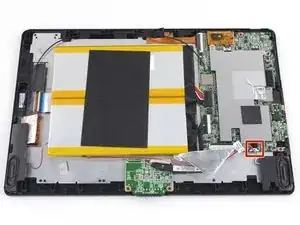

  2. qfqOHVOut52JsMTl
    qfqOHVOut52JsMTl
    vEoZ1PYW2yQvtXPX

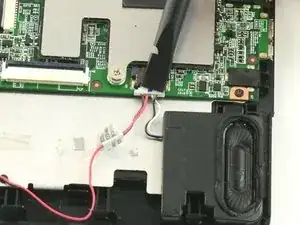

    • Use a spudger to release the speaker wires by pushing the bundled cabled connector away from the motherboard.

    • Be sure to pull out the white connector instead of the individual wires to avoid damage to the device.

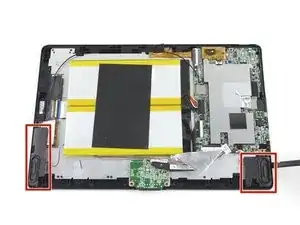

  3. aOvwpcicQDNY6aVY
    • Use a spudger to lift the speakers out of the device.

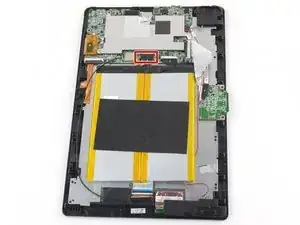

  4. kLKwDj2aHVagP5Mg
    kLKwDj2aHVagP5Mg
    33FbsZ1kP56Uhl43

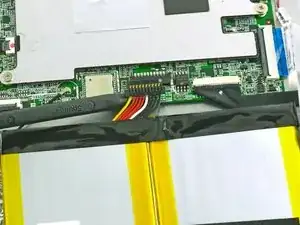

    • Use a spudger to disconnect the black bundled cable connector from the motherboard.

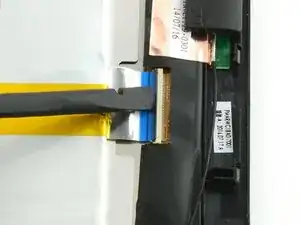

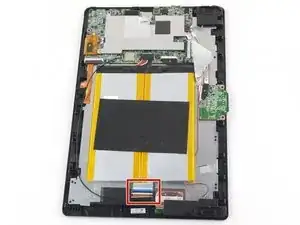

  5. kOi3RhLhuLBFkGoV
    kOi3RhLhuLBFkGoV
    AJludX4VhiOctykA
    SVLNiUhhv5KfEyDB

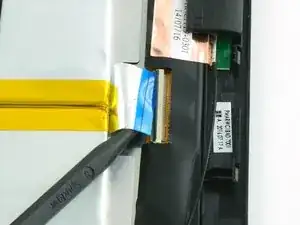

    • Use a spudger to lift the black tab on top of the ZIF connector.

    • Slide the ribbon cable out of the connector.

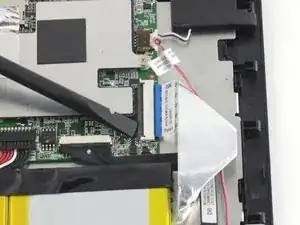

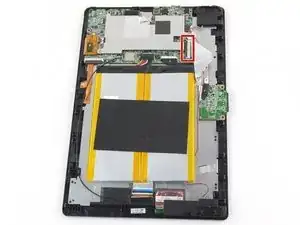

  6. 6TMAWcUXDS3hbJNe
    6TMAWcUXDS3hbJNe
    V6DXuayK2kH1ZVt2
    mIXPEPIdhpgEmltj
    • Use a spudger to flip up the black retaining flap on the ZIF connector.

    • Pull the folded ribbon cable straight out of the connector.

    • This ribbon cable must be disconnected before removing the battery because it is attached to the battery with adhesive.

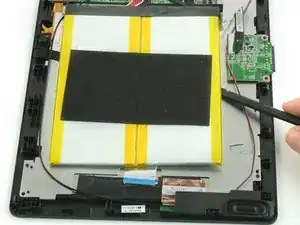

  7. HHywNc2uwuE1KqUN
    • Use a spudger to pry the battery away from the device.

    • Always use ESD safe tools when working with delicate electrical components.

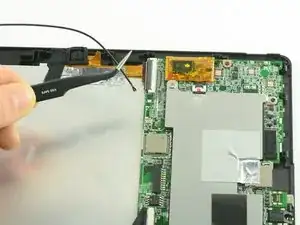

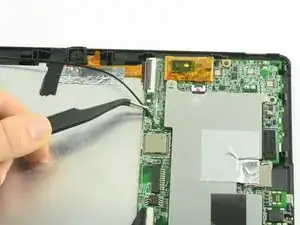

  8. PAEEOhwlBtlqdHhT
    PAEEOhwlBtlqdHhT
    NZOkEllDXUB5YxCS
    • Use ESD safe tweezers to disconnect the antenna from the motherboard.

  9. AvOeJBxy3SADAVxM
    AvOeJBxy3SADAVxM
    hxIs4VDeTOfoUu1S
    Hw6HQKYrPjlNbQ1Y

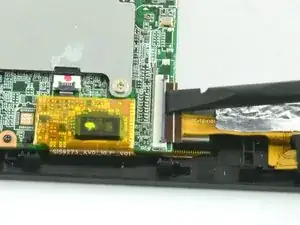

    • Use a spudger to flip up the black flap on the camera's ZIF connector.

    • Pull the ribbon cable straight out of the connector.

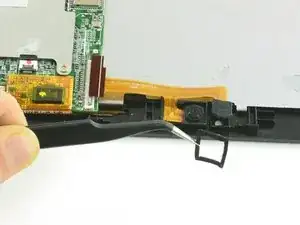

  10. 6THTlnH2Y66ZBtFM
    6THTlnH2Y66ZBtFM
    HhM1MRPGJgIUDyDB

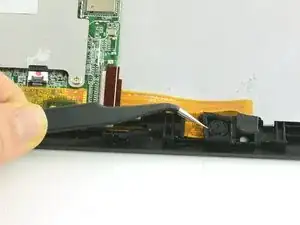

    • Use tweezers to remove the black cushion surrounding the camera lens.

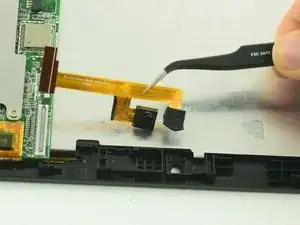

  11. rodkBWXbMNGlIV1t
    rodkBWXbMNGlIV1t
    OCJDxyfCOyLQ3VmF

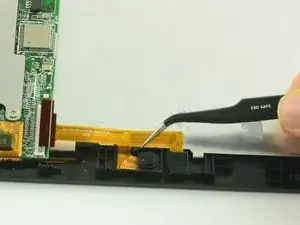

    • Use tweezers to lift the camera assembly away from the device.

    • Lift straight up to avoid tearing the delicate ribbon cable on the retaining wall.

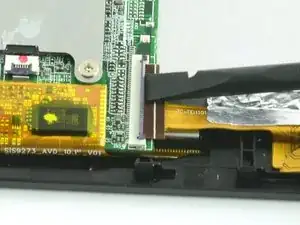

  12. bBCCLLTsH1EVcUaL
    bBCCLLTsH1EVcUaL
    gUDVwHLHmTbwnuFU
    Oe3jeYGcjcEEDb5F

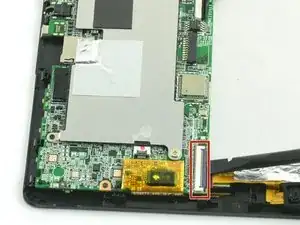

    • Use a spudger to flip up the black flap on the camera's ZIF connector.

    • Pull the ribbon cable straight out of the connector.

  13. YJHXOOBtJjV4TDRB

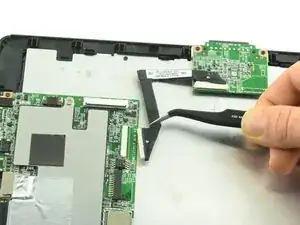

    • Use tweezers to pull the dock connection cable away from the motherboard.

  14. Kf1yePQmnNAFoIJF
    • Use a Phillips #00 screwdriver to unscrew the two 3.4 mm screws.

    • Use a Phillips #000 screwdriver to unscrew the one 4.2mm screw.

  15. jBIVQXFkCU6qlUhn
    • Lift the protective shield away from the motherboard.

  16. tV3ACHBw5eZfQdoN
    tV3ACHBw5eZfQdoN
    LcM4NamCQXyRYIGF
    EwJiIqUbh3g5GA4K

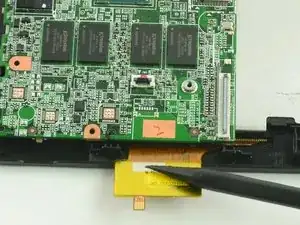

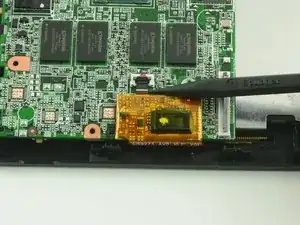

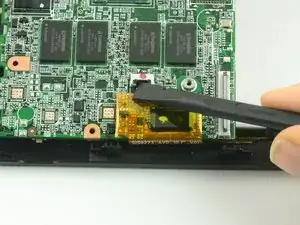

    • With the flat end of a spudger, flip up the black flap on the display's ZIF connector.

    • Insert the pointed end of the spudger between the cable and the motherboard and gently pull the cable straight out of the connector.

    • During reassembly, be sure to insert the cable into the connector up to the white line on the cable and then close the retaining flap.

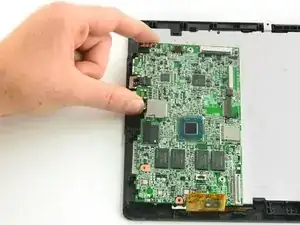

  17. QjkJdsfwkTlpLwFx
    • Gently lift the motherboard away from the display assembly.

  18. EmsbGEIVPuxUcWo5

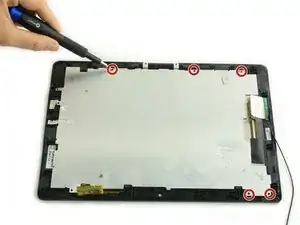

    • Unscrew the five 4.2mm screws with a Phillips #000 screwdriver.

  19. PpBYiGhp6bLQinxP
    PpBYiGhp6bLQinxP
    5VaYLNFSLoxQIskM

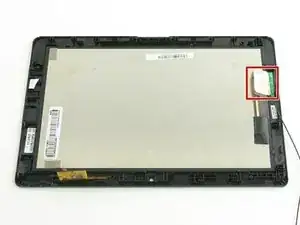

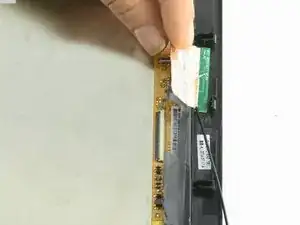

    • Peel the protective flap away from the display.

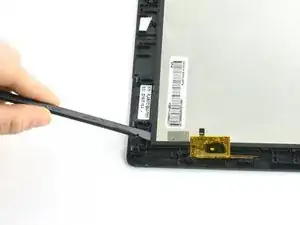

  20. pfoXcQ5VIPLePAbo
    pfoXcQ5VIPLePAbo
    1MwhGdQ3ElAJpooW

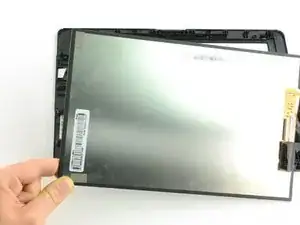

    • Use a spudger to lift the digitizer away from the screen.

    • Grasp the edge of the digitizer and lift straight up to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
