One Education Infinity:One Dock Contact Assembly Replacement

Geschrieben von: Taylor Bratsch
  • Kommentare: 0
One Education Infinity:One Dock Contact Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

7 - 20 Minuten

Einleitung

This guide will detail how to replace the circuit board that connects the tablet top with the keyboard base. If the base fails to connect to the tablet replacing this circuit board might solve the problem.

  1. kLKwDj2aHVagP5Mg
    kLKwDj2aHVagP5Mg
    33FbsZ1kP56Uhl43

    • Use a spudger to disconnect the black bundled cable connector from the motherboard.

  2. kOi3RhLhuLBFkGoV
    kOi3RhLhuLBFkGoV
    AJludX4VhiOctykA
    SVLNiUhhv5KfEyDB

    • Use a spudger to lift the black tab on top of the ZIF connector.

    • Slide the ribbon cable out of the connector.

  3. 6TMAWcUXDS3hbJNe
    6TMAWcUXDS3hbJNe
    V6DXuayK2kH1ZVt2
    mIXPEPIdhpgEmltj

    • Use a spudger to flip up the black retaining flap on the ZIF connector.

    • Pull the folded ribbon cable straight out of the connector.

    • This ribbon cable must be disconnected before removing the battery because it is attached to the battery with adhesive.

  4. HHywNc2uwuE1KqUN

    • Use a spudger to pry the battery away from the device.

    • Always use ESD safe tools when working with delicate electrical components.

  5. BIoEVXCqVCM4Vj1h

    • Use tweezers to pull the dock contact display cable away from the connector on the motherboard.

  6. bYiaIPtnb5ykYiEj

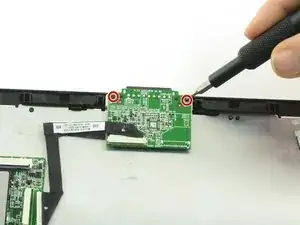

    • Use a Phillips #000 screwdriver to unscrew the two 4.2mm screws from the circuit board containing the dock contact.

  7. vkjTsJFAMmeC3GmJ

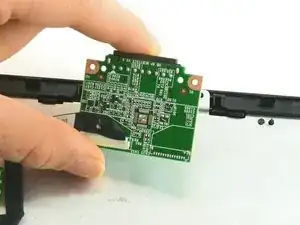

    • Lift the dock contact assembly away from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
