One Education Infinity:One Hinge Contact Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

20 - 35 Minuten

Einleitung

This guide can be used to remove the entire hinge or the hinge contact assembly. The hinge, along with its contact assembly, connects the keyboard base with the tablet. If the tablet fails to recognize the keyboard, replacing this contact assembly might solve the problem.

  1. DFZJjJM1ocjDvQZJ
    DFZJjJM1ocjDvQZJ
    4HiAKnxrUndYjGBh

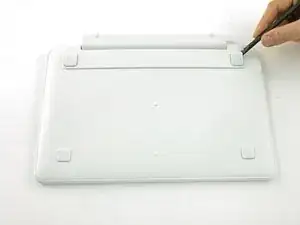

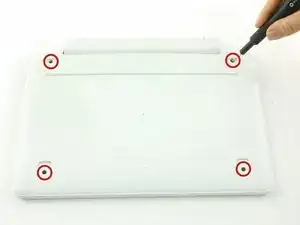

    • Use a spudger to pry the four rubber pads away from the bottom of the case.

    • Use a Phillips #00 screwdriver to unscrew the four 6.4 mm screws.

  2. nlYAL4fHOFKP4MiM
    nlYAL4fHOFKP4MiM
    hZvExlYrUEyG2bEW

    • Insert a Jimmy or other prying tool into the seam on the edge of the casing.

    • Trace along the edges of the device until all clips are released.

    • Lift the back case away from the device.

  3. 3yDWePtDZf3kWGeB

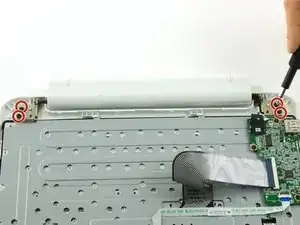

    • Use a Phillips #00 screwdriver to unscrew the four 6.4mm screws on the hinge mounts.

  4. GgwVPnDTD61dCvV2
    GgwVPnDTD61dCvV2
    GetRSJPVJiiQZhCs

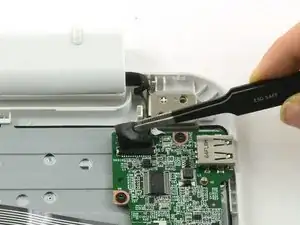

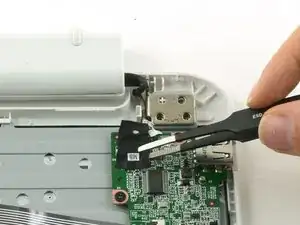

    • Use tweezers to lift the fabric cover and hinge connector away from the daughterboard.

    • Always use ESD safe tools when working with delicate electrical components.

  5. lWdH1YT6LZiGnNHq
    lWdH1YT6LZiGnNHq
    5xdXqwovhNsEjHsu

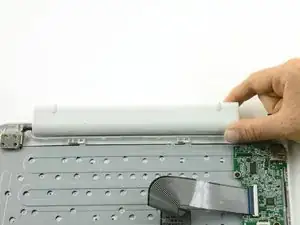

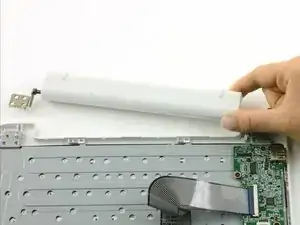

    • Lift the hinge away from the device.

  6. 6RL3ZvJlqTDHZsqa

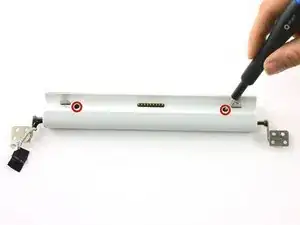

    • Use a Phillips #00 screwdriver to unscrew the two 6.5mm screws.

  7. OMTV2GRCpmsEYVo4
    OMTV2GRCpmsEYVo4
    UlegjYXoJxJFadTa

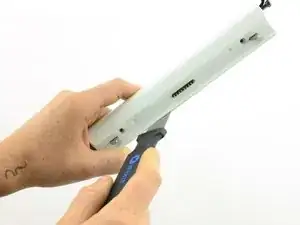

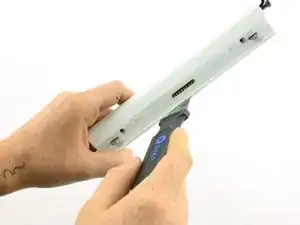

    • Slide a Jimmy or other prying tool along the seam of the hinge to pry the casing apart.

  8. tX22nXKNylrFGcLT

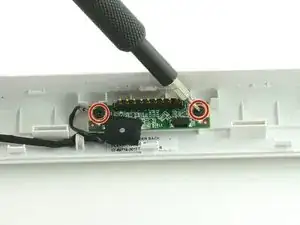

    • Use a Phillips #00 screwdriver to remove the two 4.3mm screws holding the circuit board in place.

  9. OlrTlhgfWHqajSgS

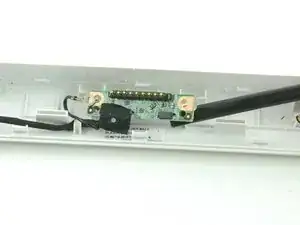

    • Use a spudger to pry the circuit board away from the casing.

    • Always use ESD safe tools when removing delicate components.

Abschluss

To reassemble your device, follow these instructions in reverse order.
