OneLink Safe and Sound Microphone Replacement

Geschrieben von: Arianna Roberts
  • Kommentare: 0
OneLink Safe and Sound Microphone Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 - 50 Minuten

Einleitung

If you need to replace the microphone of your OneLink Safe and Sound smoke and carbon monoxide alarm and premium home speaker with Alexa, follow this guide.

If the microphone is not working, the Alexa feature will not work. For help with troubleshooting your device, visit the OneLink Safe and Sound Troubleshooting page.

  1. uglrHRHnDweYQm4F
    uglrHRHnDweYQm4F
    TWdMto3ggFfQG5vY

    • Run the metal spudger under the plastic rim and around the perimeter, on the top of the device to loosen the adhesive.

    • Remove plastic rim.

  2. lx2ZSfqEviaEqOjt
    lx2ZSfqEviaEqOjt
    gPLcncqWIFOaPYWe

    • Use a Phillips #0 screwdriver to remove nine screws from the top of the device.

  3. LaCPXH4HQEaCXDkn
    LaCPXH4HQEaCXDkn
    xiNSFkGhx5O3CsyC

    • Don't yank or pull the lid off as there are ribbons and cables connecting the top of the device to the motherboard. They need to be disconnected before the top is removed.

    • Use tweezers or a spudger to disconnect the ribbon from the motherboard.

  4. nEEVGBeYNkSIYqCF

    • Use tweezers to unplug the speaker cable from the motherboard.

  5. EnmXY4LVaETUUS2N
    EnmXY4LVaETUUS2N
    VvGBmHZ5vfmFfRbJ

    • Use the plastic opening tool to remove the microphone connection from the motherboard.

    • Remove the top of the device.

  6. tVDRhu3xjVbgykME
    tVDRhu3xjVbgykME
    YPdgUJTGJBB16QH6

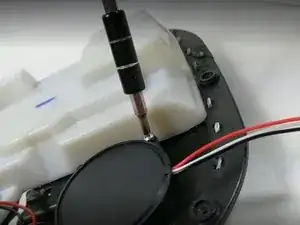

    • Use a Phillips #0 screwdriver to remove the two screws that secure the microphone to the device.

  7. kwlKpAuW2qA6m2FX

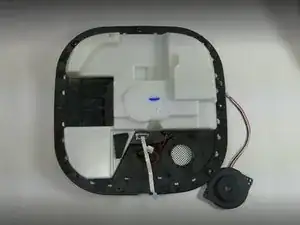

    • Use your hands to remove the microphone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
