Einleitung

If you need to replace the speakers of your OneLink Safe and Sound, follow this step-by-step speaker replacement guide. The speakers are located in the base of the device so it needs to be completely disassembled. You'll need to replace the entire base of the device which contain the speakers.

  1. uglrHRHnDweYQm4F
    uglrHRHnDweYQm4F
    TWdMto3ggFfQG5vY

    • Run the metal spudger under the plastic rim and around the perimeter, on the top of the device to loosen the adhesive.

    • Remove plastic rim.

  2. lx2ZSfqEviaEqOjt
    lx2ZSfqEviaEqOjt
    gPLcncqWIFOaPYWe

    • Use a Phillips #0 screwdriver to remove nine screws from the top of the device.

  3. LaCPXH4HQEaCXDkn
    LaCPXH4HQEaCXDkn
    xiNSFkGhx5O3CsyC

    • Don't yank or pull the lid off as there are ribbons and cables connecting the top of the device to the motherboard. They need to be disconnected before the top is removed.

    • Use tweezers or a spudger to disconnect the ribbon from the motherboard.

  4. nEEVGBeYNkSIYqCF

    • Use tweezers to unplug the speaker cable from the motherboard.

  5. EnmXY4LVaETUUS2N
    EnmXY4LVaETUUS2N
    VvGBmHZ5vfmFfRbJ

    • Use the plastic opening tool to remove the microphone connection from the motherboard.

    • Remove the top of the device.

  6. epfcEoVBCM5CSpwv

    • Use the plastic opening tool to disconnect the cable from the motherboard.

  7. vjWGC4v4kNBoNmVO
    vjWGC4v4kNBoNmVO
    SjTy5iWlxBOBiQjw

    • Use a Phillips #0 screwdriver to remove the single screw securing the plastic battery cage.

  8. uHUMQfXSSZKN2JDQ
    uHUMQfXSSZKN2JDQ
    BAAlkOG1AStCDLBP

    • Remove the plastic cage holding the battery in place.

    • Remove the battery from the device.

  9. oAvduyZUuLlonuDM

    • Use the opening tool to disconnect the Wi-Fi cable from the Bluetooth module.

  10. IEXCbRI6tK51DIAv
    IEXCbRI6tK51DIAv
    SeXnnkeIOBwKVlts

    • Lift the Bluetooth module off of the daughterboard.

    • Lift it straight up to avoid bending the delicate pins that connect the Bluetooth module to the board.

  11. olTvkcpaG5PxVtVk
    olTvkcpaG5PxVtVk
    e35NAO115nHDYOiN
    hWx2SiTrv6UBQIUp

    • Use the opening tool to disconnect the speaker cables from the daughterboard.

    • Use the opening to lift the daughterboard off of the motherboard.

    • The daughterboard is sitting on a white plastic base on top of the motherboard.

  12. 1fVTXgpqoKgkHHvM
    1fVTXgpqoKgkHHvM
    FMDBxFkWG3KaVFJI

    • Use a Phillips #0 screwdriver to remove seven screws securing the white base and motherboard.

  13. V62uudKMOXbFqjMH
    V62uudKMOXbFqjMH
    mGJMC4t2opuwkd5v
    HRWji63E2vdRxbhm

    • Gently remove the motherboard.

  14. KMOUyTARIHbYm6qd
    KMOUyTARIHbYm6qd
    PttlVSZ4dnnsQESR

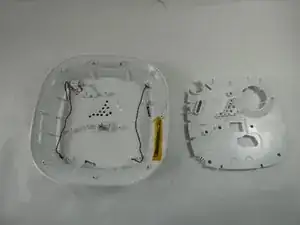

    • Remove the speaker cables from the channels along the edge of the speaker cover.

    • Use an opening tool or your fingers to lift the speaker cover off of the back cover which houses the speakers.

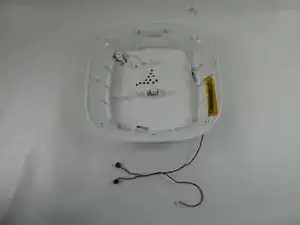

  15. xLToFXnumfsEyjQm

    • When the speaker cover is removed the speakers can be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
