OnePlus 2 Screen Replacement

Geschrieben von: Kayla Williams
  • Kommentare: 34
OnePlus 2 Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

14

Zeitaufwand

20 - 25 Minuten

Einleitung

Before you replace your screen you will need to take out the battery.

  1. ZGpvZSAfri2SYEIb
    ZGpvZSAfri2SYEIb
    MOBbJpFEfHgDXRgu
    SJrABmDTYrLHhpSD

    • Make sure that your phone is turned off before proceeding

    • Use an opening pick, your thumbnail, or a spudger to gently pry off the external casing

  2. FyvpLM6vnR2JndmM
    FyvpLM6vnR2JndmM
    QulOEyihUn3NBlkL
    uxEqvaKOgoGFKqMJ

    • Locate the SIM card tray on the back of the phone

    • Use your thumb to gently slide out the tray

  3. esO5MIstJGuoTuVO

    • Remove the SIM card tray

  4. CITBXWwHriVVFDrp
    CITBXWwHriVVFDrp
    suSj26JMnXSXjikP
    JV3g5H1WeC4DGSCJ

    • Find and carefully remove all 6 rubber screw covers with the tweezers.

    • Unscrew all 18 screws from the mid frame.

    Be carefull the rubber screw covers bounce away and you won't find them.

    Max K -

  5. uIcFPvu5aKZjRETw
    uIcFPvu5aKZjRETw
    AUB4wZEiRIeTcBFm
    VqikeDfRHPDAEUyq

    • Carefully pry up the mid frame from the back of the phone with the plastic opening tools.

    • Slowly work your way around the phone releasing all the clips that hold the frame in place.

  6. tQNxNaMmxOvxHEr1
    tQNxNaMmxOvxHEr1
    BwK2PNZmMFnsDlXf
    GnLDpbilIKtAx1WJ

    • Using the spudger tool, pry the battery up from the adhesive.

    • Once the battery is loose from the adhesive holding it down, use the spudger tool to pry up the connection from the battery to the phone on the top right hand side.

    The battery connection was under a black tape in my phone. Remove the tape strip first.

    Jose Miranda -

    Removing the battery was really difficult. I had to apply a lot of force. You think something is going to break, but it eventually comes loose.

    Jose Miranda -

    Followed the procedure and all worked as expected. Thanks for this tutorial.

    Pedro Fonseca -

  7. LOEGO3btnWHswrdO
    LOEGO3btnWHswrdO
    SAPjDeF1EX4UTXGv

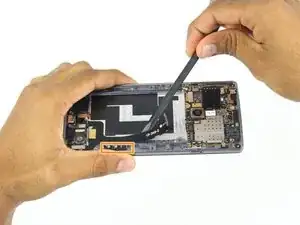

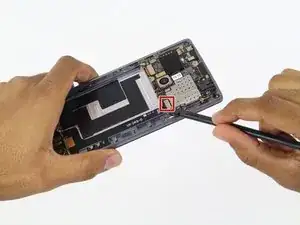

    • Use the spudger tool to pry up the top connection of the charging port.

    • Follow the cable with the spudger and slowly pry it up from the adhesive holding it down.

    • Stop at the next connection.

  8. QjYK3CmDiRZUkKkk
    QjYK3CmDiRZUkKkk
    VcqZhBHYWrdfWLLq
    R6ZqDlNOohN6r2oq

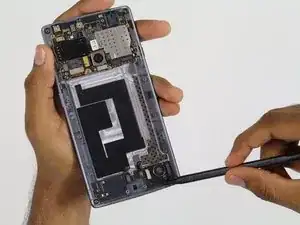

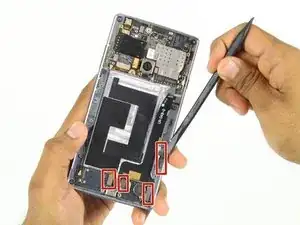

    • Again, using the spudger tool, pry up the final 4 connections on the charging port

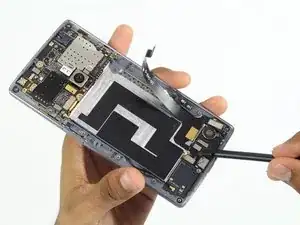

    • Again, just like before, slowly follow the cable with the spudger tool lifting it up from the adhesive backing.

  9. n1IJZDQukh5RyZxH
    n1IJZDQukh5RyZxH
    1VWRN1nC2cFvb2Hj
    G3dQyLoayTQRpREi

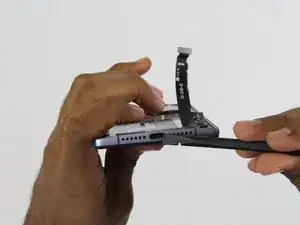

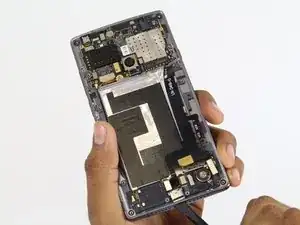

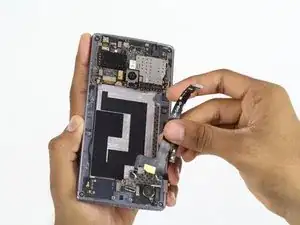

    • Using the spudger tool on the bottom of the phone, push the charging part inward.

    • Once the charging port is free from the frame, use your fingers to remove the charging port the rest of the way.

  10. wUvJpeW1ebGhUGv5
    wUvJpeW1ebGhUGv5
    qd2hWdjJGFHHQwOm
    cZxFirYYTCgTmnTG

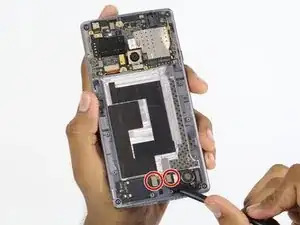

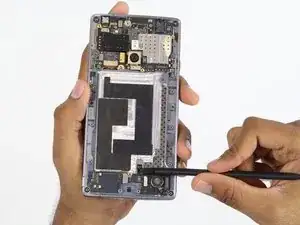

    • Locate two connections at the bottom of the phone.

    • Using a spudger, carefully bend the connections up and towards the top of the phone.

  11. WLbWaZcujbyTRHCF
    WLbWaZcujbyTRHCF
    34HuMWc2gqSIFtZv

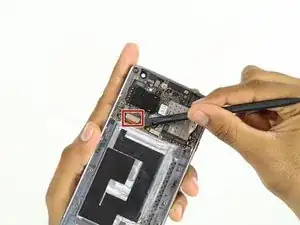

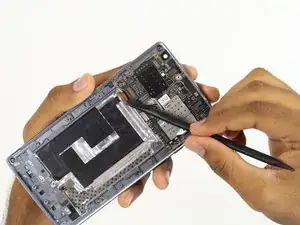

    • Locate connection left of the rear facing camera.

    • If black tape covers the connector, use tweezers to carefully peel it back.

    • Using a spudger, carefully pry the connector out and bend it towards the bottom of the phone.

  12. 1GhsXcufEl6xa6cH

    • Flip your phone so that the screen is facing up

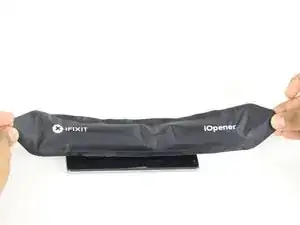

    • Place a warm iOpener on the screen to heat up the adhesive holding the screen in place

    • Leave on for one minute

  13. IPGOOXGAmrDYNs2R
    IPGOOXGAmrDYNs2R
    ogQtCLPmFxqk4T2O

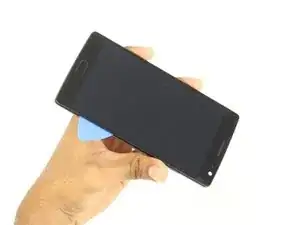

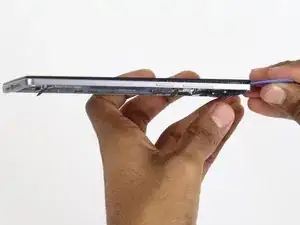

    • Use a pick to carefully separate the screen and the rest of the phone.

    • Make sure to go around every edge and corner.

  14. DTS3r5reaN6XZQYm
    DTS3r5reaN6XZQYm
    fPuogRpnAaSZFiMh

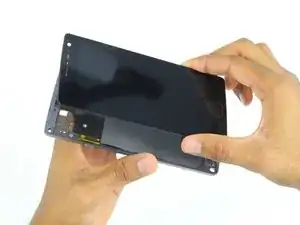

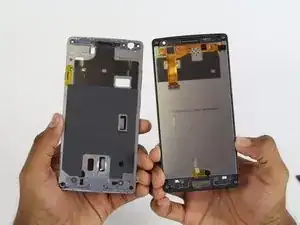

    • Slowly separate the screen from the rest of the phone.

    The replacement screen sold on ifixit does come with the rear camera connection, so you can remove that with the old screen, but it does not come with the home button or charging port. Be especially careful not to damage those parts as you pull off the old screen because you will be salvaging them.

    Aly White -

Abschluss

To reassemble your device, follow these instructions in reverse order.
