Einleitung

  1. BwWikyqOk15xFAkY

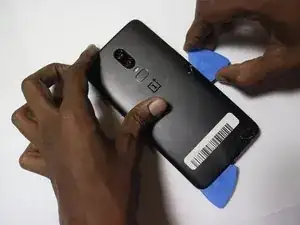

    • Turn on the heat gun to a low heat and and gently heat the curved edges on the back of the phone.

    • Be careful not to overheat or melt the plastic; heat guns can get out of hand quickly!

    • Wedge the opening picks between the front and back panel and slide them around the perimeter to break the adhesive securing the back cover.

    • Repeat until the back panel is fully released.

    I used half a razor blade here

    derhagen -

  2. XGN4gblHUXuTQGur
    XGN4gblHUXuTQGur
    fGraGfd2KcDt2YZj

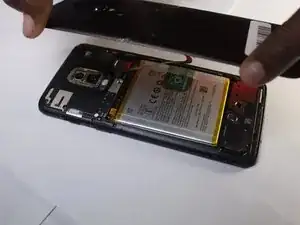

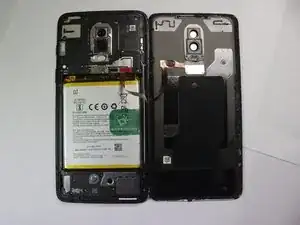

    • Gently lift up the back panel, with care not to damage the fingerprint sensor ribbon cable.

  3. M1ZIJHOo5Ef5eISa
    M1ZIJHOo5Ef5eISa
    p3NTQldcwbUQIlUN

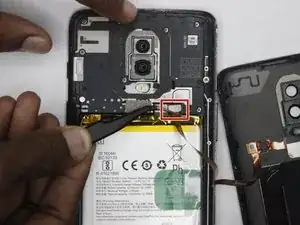

    • Use a pair of tweezers to gently pull up on the red tab and disconnect the cable from the device.

    • Completely remove the back panel from the device.

  4. vO5s3R1cpApvt6IT
    vO5s3R1cpApvt6IT
    nDrlR4rWXw6QNwIr

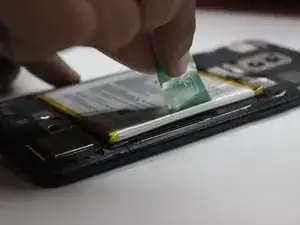

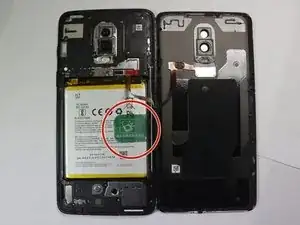

    • Grip the green tab connected to the battery and pull the battery directly up and out.

  5. dilRe2hUBtdoBT46

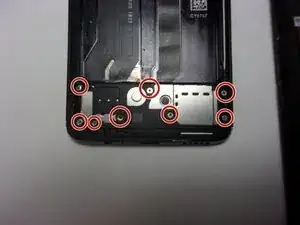

    • Use a Phillips #000 screwdriver to remove the eight screws.

    • Carefully lift the speaker up and out of the chassis.

    • If you're completing a screen replacement, skip to Step 9.

  6. GcYoVwd4q2dJgWfQ

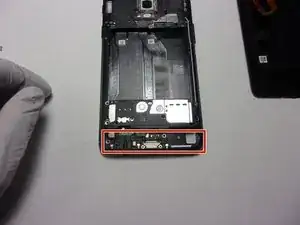

    • Properly orient the new speaker unit and use a Phillips #000 screwdriver to replace the eight screws removed from the previous step.

  7. I6JqxEaMpJc5IWIY
    • Place the battery back into the phone and connect it to the same port, making sure to firmly press the connection down into place.

    • Place the red cover back over the top of the port.

  8. mPup1AEYIQrV4S2N

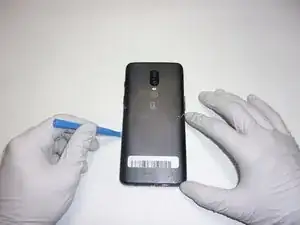

    • Strip the existing adhesive, and place new adhesive around the entire perimeter of the back cover.

    • Replace the back cover and hold it down for about a minute to to let the adhesive set.

Abschluss

Enjoy your new speaker!
