Einleitung
Use this guide to replace the battery cover in your OnePlus 7T smartphone.
Before disassembling your device, be sure the battery is charged below 25%. If accidentally punctured or damaged, the battery can catch fire and/or explode; if discharged below 25%, the chances of fire/explosion are decreased.
Follow the iOpener Heating guide for instructions on using the iOpener.
Ersatzteile
-
-

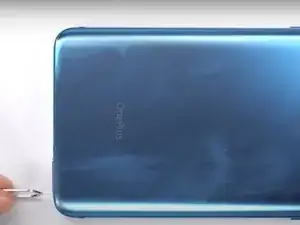

Insert and gently push the SIM card ejector tool (or an unfolded paperclip) into the small hole on the left side of the top edge of the phone.
-
Press gently to eject the SIM tray.
-

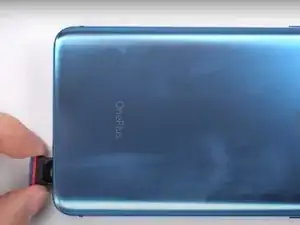

Remove the SIM card tray from the device.
-
-
-

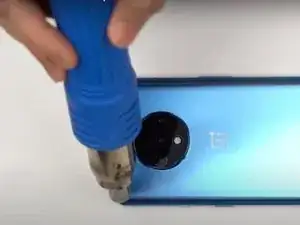

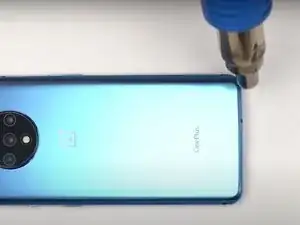

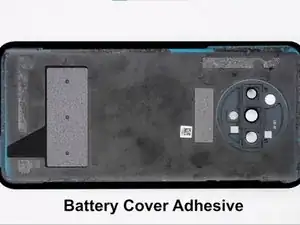

Use a heat gun to lightly heat the edges of the back to soften the adhesive that connects the back cover to the rest of the frame.
-
-
-

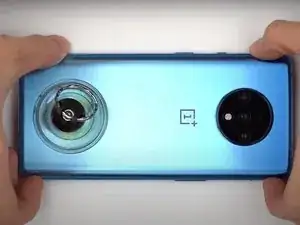

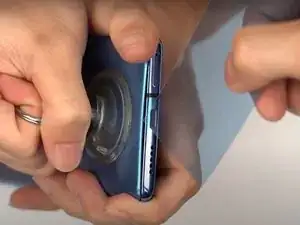

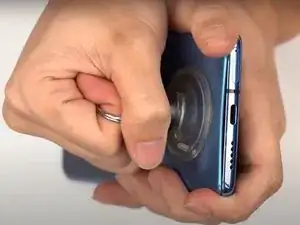

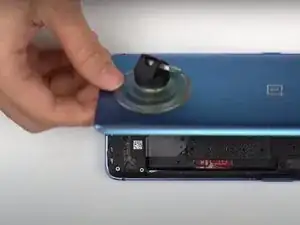

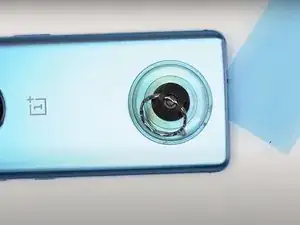

Apply a suction cup to the lower portion of the phone's backing and pull firmly to create a crack between the back cover and the rest of the phone.
-

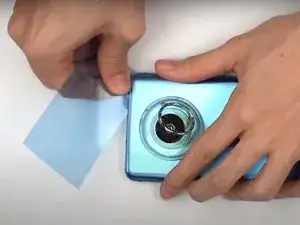

Insert a Jimmy tool, opening pick, or plastic card under the edge of the back cover.
-
-
-

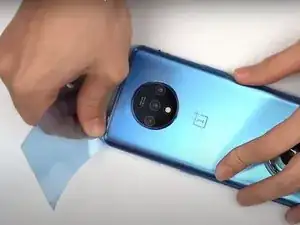

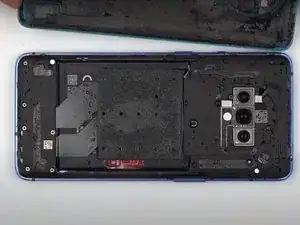

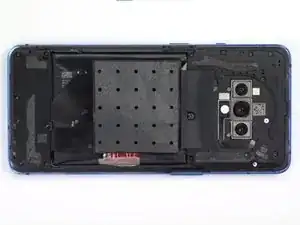

Use a plastic card or Jimmy tool to slice around the phone's seam, cutting through the adhesive.
-
To reassemble your device, follow these instructions in reverse order.
