OnePlus 7T Screen Replacement

Geschrieben von: Selena
  • Kommentare: 2
OnePlus 7T Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

10 - 20 Minuten

Einleitung

Use this guide to repair a broken or faulty display in your OnePlus 7T smartphone.

Before disassembling your device, be sure the battery is charged below 25%. If accidentally punctured or damaged, the battery can catch fire and/or explode; if discharged below 25%, the chances of fire/explosion is decreased. Be sure to power off the device before beginning the disassembly process.

Follow the iOpener Heating guide for instructions on using the iOpener.

OnePlus 7T Screen Replacement

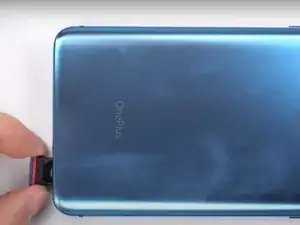

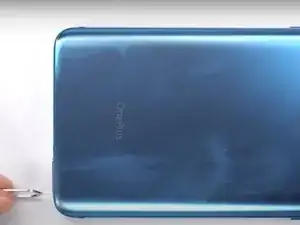

  1. ZwtpTipa61RIdWiQ
    ZwtpTipa61RIdWiQ
    5YqRB3liiuopFoEE
    iklGIw3ZCK2Swe3r

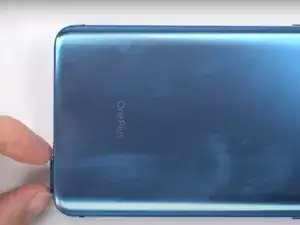

    • Insert and gently push the SIM card ejector tool (or an unfolded paperclip) into the small hole on the left side of the top edge of the phone.

    • Press gently to eject the SIM tray.

    • Remove the SIM card tray from the device.

    • To reinsert the SIM card tray, orient the SIM card with the gold contacts facing up and the notch to the bottom right. Reinsert the SIM card by pressing the card gently into the SIM tray slot.

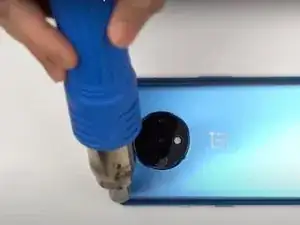

  2. XNhOQQ16Llirwmyd
    XNhOQQ16Llirwmyd
    cjNPAC3y3HTDxnHL

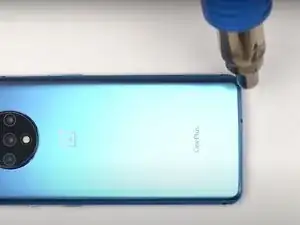

    • Use a heat gun to lightly heat the edges of the back to soften the adhesive that connects the back cover to the rest of the frame.

    • Using a heat gun, hair dryer, or hot plate will make the metal frame rather hot to the touch, so handle it with care.

    • Be careful not to overheat the device –the OLED display, battery and other internal parts can be damaged by excessive heat. Approximately one minute should be enough to soften the adhesive.

    • An iFixit iOpener, hairdryer, or hot plate can also be used to heat the edges. See the iOpener Heating guide for instructions on using the iOpener.

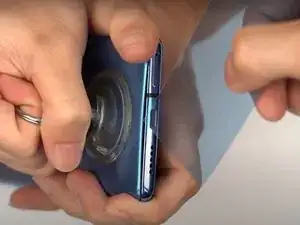

  3. 4JTrJFAtQ5ByOuFJ
    4JTrJFAtQ5ByOuFJ
    PaEjlJDWjL5uN2Na
    OtB15FuX3AmRcEL3

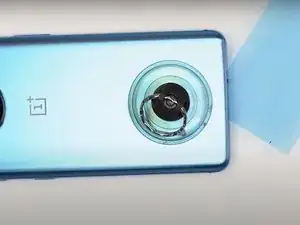

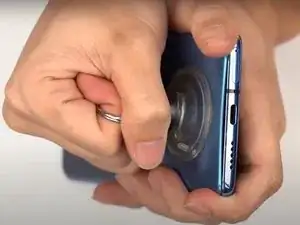

    • Apply a suction cup to the lower portion of the phone's backing and pull firmly to create a crack between the back cover and the rest of the phone.

    • Insert a Jimmy tool, opening pick, or plastic card under the edge of the back cover.

  4. tdMlYGRDVMlCMpOo
    tdMlYGRDVMlCMpOo
    DHEIDIDrv5I5oYwE

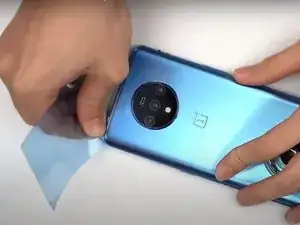

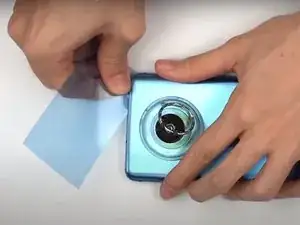

    • Use a plastic card or Jimmy tool to slice around the phone's seam, cutting through the adhesive.

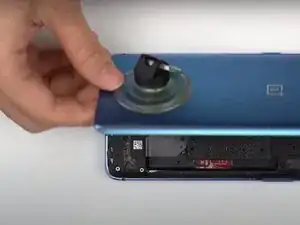

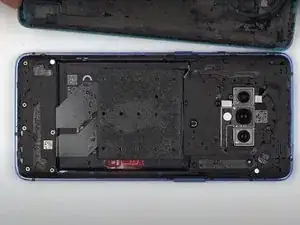

  5. fbIFAfgM4ogTCb2V
    fbIFAfgM4ogTCb2V
    RnoMSLQwjKME2T4t
    pIEGPtgxSXSRAxOW

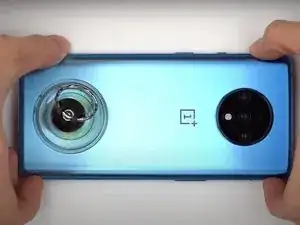

    • Remove the phone's back cover.

    • If you have replacement adhesive strips, remove any remaining adhesive from the device frame using the Jimmy tool.

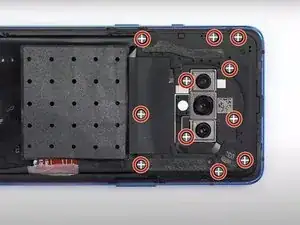

  6. WXQZMIDLsCYvdcKD

    • Use a Phillips screwdriver to remove the 11 screws from the plastic motherboard cover.

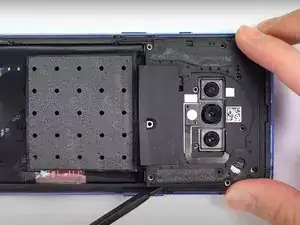

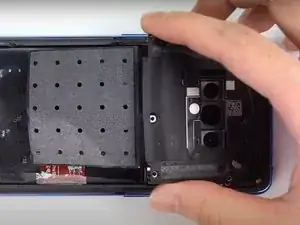

  7. xeiHZgdQy5VnbXFw
    xeiHZgdQy5VnbXFw
    WQ1hj3YP5xcmZmM3
    sip2HxEhjGlfFK1g

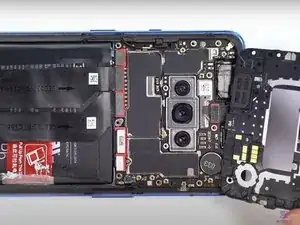

    • Use a spudger to pry up the plastic motherboard cover.

    • Remove the plastic motherboard cover.

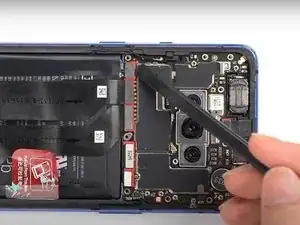

  8. BscbJKciCKoGnaBt
    BscbJKciCKoGnaBt
    1JFHDZ6CrsZnXQtK

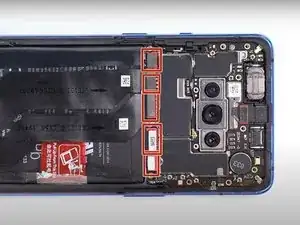

    • Use the flat end of a spudger to disconnect all flex cables leading to the motherboard.

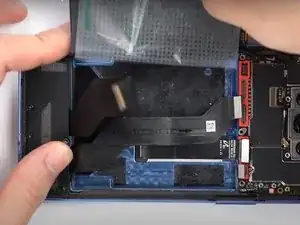

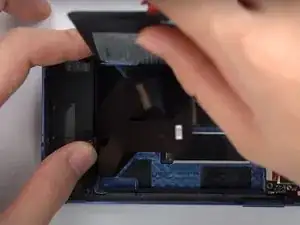

  9. XX2saKv1uVe1YTMj
    XX2saKv1uVe1YTMj
    qm6F6bNJnglWiyXi
    KxyhEJZvXEqRC54J

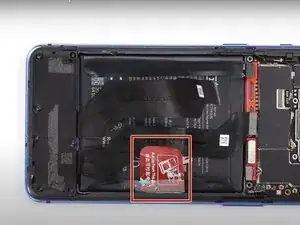

    • Grasp the red battery tab with your fingers.

    • Pull upwards on the tab and remove the battery.

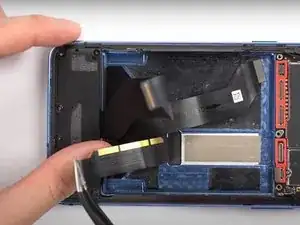

  10. sGFbqrI5FQOLjFqM
    sGFbqrI5FQOLjFqM
    AFdrgaCyu23TOwoZ
    JVP3UMeViNvYuVi4

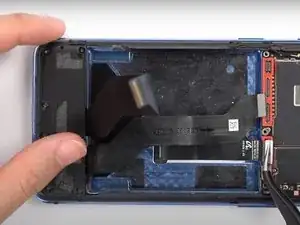

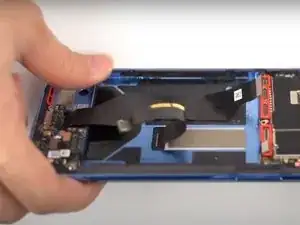

    • Use a pair of tweezers to grasp the end of the flex cables that were just disconnected.

    • Gently pull the cables backwards so that they remain bent back from the phone's motherboard area.

  11. AZWM5FqkGBtb1YvK
    AZWM5FqkGBtb1YvK
    P2WnwEXcXfLSm3MR

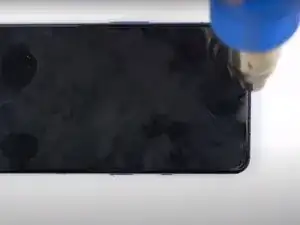

    • Use a heat gun to lightly heat the edges of the phone's screen to soften the adhesive that connects the display to the rest of the frame.

    • An iFixit iOpener, hair dryer, or hot plate can also be used to heat the edges. Using a heat gun, hair dryer, or hot plate will make the metal frame rather hot to the touch, so handle it with care.

    • Be careful not to overheat the device –the OLED display, battery and other internal parts can be damaged by excessive heat. Approximately one minute should be enough to soften the adhesive.

    • An iFixit iOpener, hair dryer, or hot plate can also be used to heat the edges. Follow the iOpener Heating guide for instructions on using the iOpener.

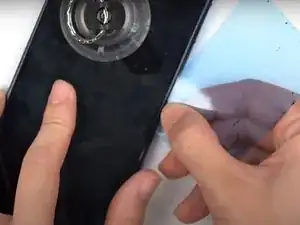

  12. W1tSwFMjSXkjLq2R
    W1tSwFMjSXkjLq2R
    6lgXFVpLjOXAbcHj
    UBY6UniG32tWWc6m

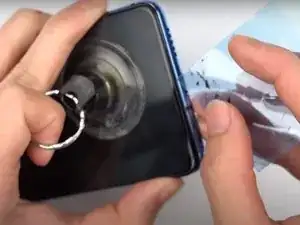

    • Apply a suction cup to the lower portion of the phone's display and pull firmly to create a crack between the screen and the rest of the phone.

    • Insert a Jimmy tool, opening pick, or plastic card under the edge of the phone's display.

    • Use a plastic card or Jimmy tool to slice around the phone's seam, cutting through the adhesive.

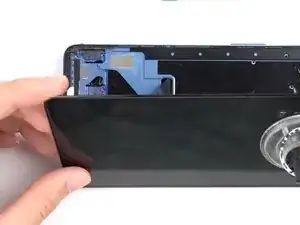

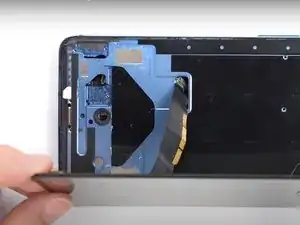

  13. nIglrSDK1DvMLNyK
    nIglrSDK1DvMLNyK
    2MAIPBYuh3ngGGNb

    • Carefully remove the phone's display.

    • A flex cable is still attached to the back of the phone's display. Make sure the cable does not become caught when removing the display.

    Great tutorial. I wonder about the liquid damage resistance. Maybe the manufacturer applies a glue sticker around the edge or similar as happens with Apple iPhones.

    Antonio Salazar -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Selena

Mitglied seit: 15/12/19

2620 Reputation

Ein Kommentar

There needs to be steps on how to reseal the device after the replacement.

Asd -
